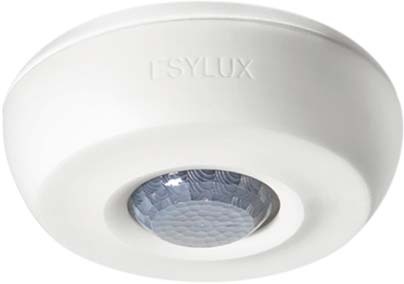

ESYLUX ESYLUX ceiling-mounted motion detector AP 360° RW approx.8m FB MD 360/8 BASIC NEW

Item condition: New and in original packaging

Manufacturers: ESYLUX#
EAN: 4015120430404
Heiz24 article number: SP6401831
TARIC: 85365080
Country of origin: DE
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 59,63

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

56 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 56 Pcs. we can order for you

Pcs.

Motion detector with 360° field of detection for ceiling mounting. Range of up to 8 m in diameter at a recommended mounting height of 3 m for use in small rooms and passageways with very little or no daylight. 10 A high-power relay. Zero-crossing switching: prolongs the service life of relays and lamps in electronic ballasts (e.g. fluorescent luminaires, LEDs) by gentle switching in zero-crossing mode. Factory setting for immediate operational readiness. Automatic light control. Additional push-button input. Standard version as surface-mounted unit, recessed ceiling mounting with accessories. Extension of the detection range by parallel connection.

PDF

Item information	Value
Version:	Bewegungsmelder
Surface protection:	unbehandelt
Colour:	weiß
Protection class (IP):	IP40
Material grade:	Thermoplast
Height:	33 mm
Transparent:	nein
Mounting type:	Aufputz Unterputz
Halogen-free:	Ja
Voltage type:	AC
Connection type:	Steckklemme
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	9010
Rated voltage:	230 V
Suitable for wall mounting:	nein
Suitable for ceiling mounting:	Ja
Constant light control:	nein
Antibacterial treatment:	nein
Switch-on delay:	30 s
Depth:	33 mm
Diameter:	101 mm
Temperature:	0..50 °C
Frequency:	50 Hz
Response brightness adjustable:	ja
Max. Duty cycle:	30 min
Extension input:	ja
Teach function for response brightness:	nein
Animal track:	nein
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Max. Switching capacity LED:	600 W
Max. Switching capacity:	2300 W
Response sensitivity adjustable:	nein
Suitable for C-load:	ja
Switch-off delay:	300 s
Control current:	0 mA
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	5..1000 lx
Number of switching zones:	1
Detection field diameter on floor:	8 m
Angle of coverage horizontal:	180..360 °
Remote controllable:	nein
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	78 A
Max. Range frontal:	3 m
Max. Range to one side:	4 m
Min. duty cycle:	15 s
With DALI interface:	nein
With remote control:	nein
With signal unit:	ja
Optimum mounting height:	3 m
Scanning angle:	360 °
Sensor swivel range, horizontal:
Sensor swivel range, vertical:
Sensor type:	passiv Infrarot
Staircase monitoring:	ja
Bypass switch:	nein
Undercrawl protection/backfield monitoring:	ja
Networkable:	nein
Forced shutdown:	ja
Forced switching on:	ja
Shipping weight:	0,14 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	10,90 × 10,90 × 8,40 cm
