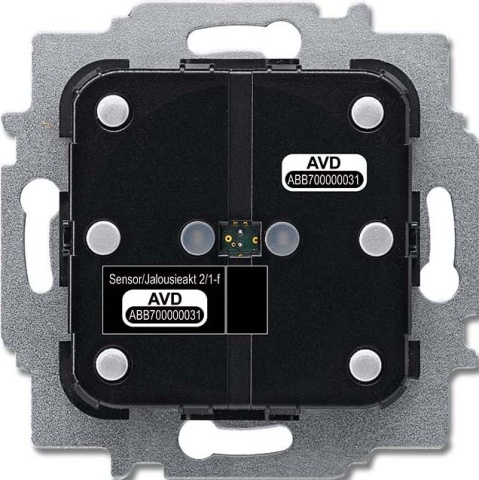

Busch-Jaeger Sensor/shutter actuator 2/1-fold 6213/2.1 NEW

Item condition: New and in original packaging

Manufacturers: Busch-Jaeger#
EAN: 4011395180068
Heiz24 article number: SP6516130
TARIC: 85389091
Country of origin: DE
Category: Installations-Bus-Systeme

€ 123,16

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

For controlling blind or awning motors. With integrated blind actuator. Blind function is also available without prior programming (left sensor channel preconfigured). Configuration can be changed subsequently via the web interface (groups, scenes, ¿). Right sensor channel for programming additional functions (groups, scenes, ¿). For contacting rocker 2-fold 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. The bus connection is made via the enclosed bus terminal. When installing in the flush-mounted box, make sure that there is spatial separation between the bus line and the 127 V/230 V installation line! If the distance is less than the minimum, use e.g. electronic boxes or insulating sleeves. Programming only with bus voltage applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online operating instructions in the current online catalogue.

Item information	Value
Protection class (IP):	IP20
Mounting type:	Unterputz
Number of inputs:	1
Other bus systems:	free@home
With bus coupling:	ja
With LED display:	ja
Min. depth of the device box:	40 mm
Max. Switching capacity:	920 W
On-site/manual operation:	ja
Current type:	AC
Max. Number of blind outputs:	1
Switching current ohmic:	4 A
Shipping weight:	0,08 kg
Item weight:	0,07 kg
Dimensions ( Length × Width × Height ):	7,80 × 9,20 × 5,80 cm
