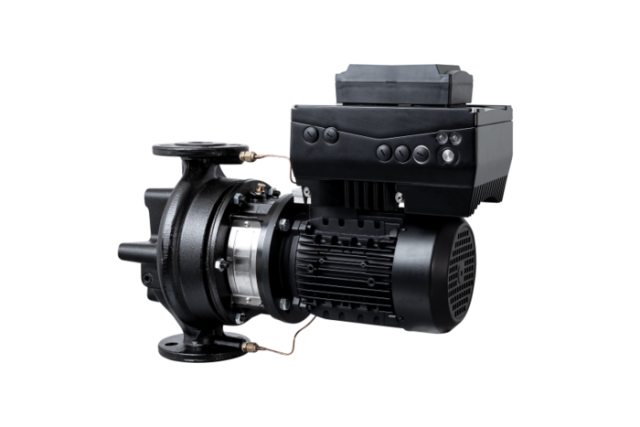

BIRAL Inline pump VivarA M 100-16 450 Integrated frequency converter with 7000000650 NEW

"Fig. similar. , errors in texts and images excepted."

BIRAL Inline pump VivarA M 100-16 450 Integrated frequency converter with 7000000650 NEW

Item condition: New and in original packaging

Manufacturers: Biral
EAN: 7630054958274
Heiz24 article number: BU7738339512
TARIC: 84137091
Country of origin: CH
Category: Diversa

€ 5.899,99

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): ca. 3 months (DE - foreign countries differ)

Pcs.

Description
Reviews

The VivarA is a regulated, compact and durable inline pump with the highest energy efficiency (iE5). This new pump family pumps media in temperature ranges from -20°C to +140°C and can therefore be used for all common HVAC applications. Via integrated Bluetooth Connect and the Biral ONE app (iOS/Android), you can configure, monitor and analyse the pump conveniently with your smartphone.
BIRAL inline pump
VivarA M 100-16 450
Integrated frequency converter
with high-efficiency synchronous motor
Efficiency according to IE5

High-efficiency inline pump
with high-efficiency synchronous motor to
Pumping of heating water
according to VDI 2035 and other media. VDI 2035 and other media
without abrasive substances in
heating, air-conditioning and cooling systems
with infinitely variable
speed control for:
- proportional pressure (pp)
- constant pressure (cp)
- constant speed (cs)

Pumped medium:...
Delivery head:...
Delivery rate:...

Hydraulic data:
Operating pressure max.: 16 bar
Nominal pressure: PN 16
Minimum efficiency index (MEI): = 0.58
Medium temperature min.: -20°C
Medium temperature max.: +140°C
Ambient temperature: -20 °C..+40 °C

Installation dimensions:
Nominal width: DN 100
Installation length: 450 mm
With foot: No

Motor data:
Connection voltage: 3x400 V
Frequency: 50 Hz
Motor efficiency class: IE5
Output power_P2: 4 kW
Input power P1: 4.35 kW
Rated current: 6.78 A
Speed: 3000 1/min
Protection class: IP55
Insulation class according to IEC: F (155°C)
Motor protection: integrated

Materials:
Pump

PDF

PDF-Info

Factsheet_VivarA_deutsch.pdf

PDF-Info

Item information	Value
Shipping weight:	103,00 kg
Item weight:	103,00 kg
LaNr.:	7738339512
