"Fig. similar. , errors in texts and images excepted."

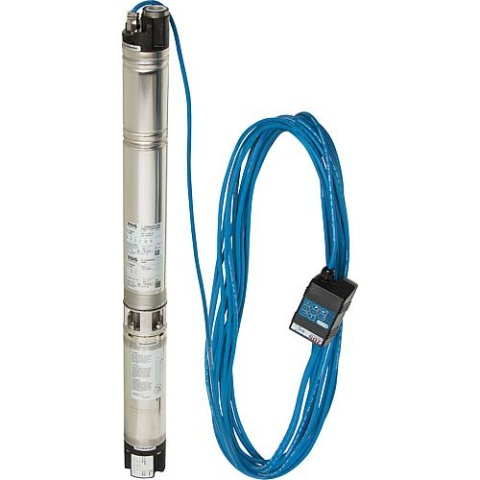

ZDS deep well pump with integrated pressure switch EVO PG.2800.15 EVO, 220 - 230V NEW

Item condition: New and in original packaging

Manufacturers: ZDS#
Heiz24 article number: WS9313496
TARIC: 84137029
Country of origin: IT
Category: Submersible pressure pumps

€ 1.119,99

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

- Pump housing: Stainless steel
- Voltage: 230 V, 50 Hz
- Impellers: Noryl
- Built-in non-return valve
- Installation options: Vertical and horizontal
- Pressure connection: DN 25 (1")
- Housing ø: 98 mm
- Max. delivery head (m): PG EVO.2800215: 48.5 / PG EVO.3000.30: 4200 / PG EVO.5000.30: 6000
- Weight: PG EVO.2800215: 19.2 / PG EVO.3000.30: 22.9 / PG EVO.5000.30: 24.2
- Without safety rope
- Operation with diaphragm pressure tank
- Permitted sand content in max. pumped liquid: 120 g/m³
- Suitable for cisterns
- Oil-cooled ZDS motor
- With built-in condenser, motor protection and automatic reset - Nominal output: 0.5 kW - With built-in condenser, motor protection and automatic reset - Nominal output: 0.5 kW - With built-in condenser, motor protection and automatic reset Reset
- Rated power: 550 W
- Max. flow rate: 4200 l
- Max. delivery head: 48.5 m
- Max. pressure: 4.85 bar
- Weight: 19.2 kg
- Cable length: 15 m

PDF

93_134_96--DBL-01-de.pdf

Datenblatt

93_134_96--DBL-01-de.pdf

Item information	Value
Type:	PG EVO.2800.15
Brand:	ZDS
Protection class (IP):	IP68
Connection:	Innengewinde (metrisch)
Material grade:	Edelstahl 304 (1.4301)
Cable length [m]:	15
Enclosure material:	rostfreier Stahl
Nominal inside diameter:	4 Zoll (100)
Rated current [A]:	4
Flow rate max. [l/h]:	4200
Pressure max. [bar]:	4,85
Rated power max. [W]:	550
Electrical connection:	Anschlusskabel mit Stecker
Shipping weight:	19,55 kg
Item weight:	19,55 kg
Dimensions ( Length × Width × Height ):	94,20 × 9,60 × 9,60 cm
LaNr.:	93 134 96
Spannung:	230 Volt
