"Fig. similar. , errors in texts and images excepted."

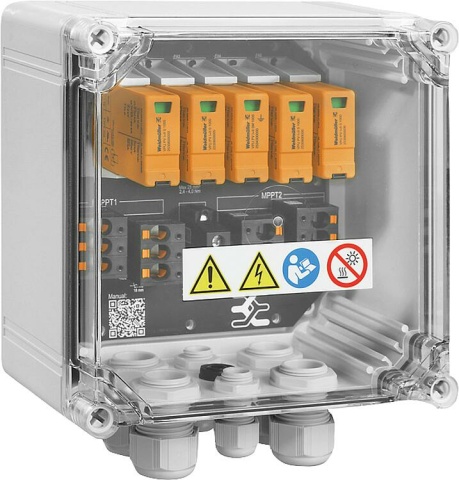

Weidmüller generator connection box for inverters with 2 MPP trackers type I + II with internal connection NEW

Item condition: New and in original packaging

Manufacturers: Weidmüller##
EAN: 4064675604006
Heiz24 article number: WS6216366
TARIC: 85371091
Country of origin: DE
Category: NEW

€ 332,30

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 we can order for you

• Suitable for protecting the DC side of a photovoltaic system in accordance with EN 5154332 Approval in accordance with lowvoltage switchgear and controlgear assemblies IEC 614391:
• 2011 and EN 614392:
• 2011 MPP tracker Number:
• 2 Inputs:
• 2 Outputs:
• 1Connections for article 62 163 66 Via M25 cable gland with 3 x 7 mm cable entry PUSH IN terminals 2.5 mm to 16 mm singlethreaded, multithreaded, with/without wire endConnections for article 62 163 67 WM4 C plug connector, compatible with cable type TV 2 Pfg1169/ 08.07/ EN 50618:
• 2063 Arrester with signal contact Connection of the signal contact via cable glands (812 mm ) max. Conductor crosssection:
• 1.5 mm Connection of the functional earth via cable glands (812 mm ) Conductor crosssection:
• 1625 mm Protection class:
• IP65 Current per maximum power point, max.:
• 30 A Rated shorttime withstand current:
• 37.5 A Rated voltage DC:
• 1,100 V Lightning impulse current Iimp (10/350 s):
• 6.25 kATotal leakage current Itotal (10/350s):
• 12.5 kATotal leakage current Itotal (8/20s):
• 50 kAShortcircuit resistance ISCPV:
• 11,000 AVoltage of the PV system, max. UCPV:
• 1.100 VOvervoltage protection DC side:
• 1,000 V type I + II Ambient temperature:
• 40 C to +50 CEverything installed in a fibreglassreinforced plastic housing

PDF

62_163_66--DBL-01-de.pdf

Datenblatt

62_163_66--DBL-01-de.pdf

Item information	Value
Brand:	Weidmüller
EAN:	4064675604006
Designation:	PVN DC 2IN/1OUTX2 2MPPT SPD1R CG 1.1KV
Ref. no.:	2866320000
Dimensions H x W x D [mm]:	228 x 200 x 132
:	2866320000
:	Typ I + II
:	Interner Anschluss
Shipping weight:	2,59 kg
Item weight:	2,59 kg
Dimensions ( Length × Width × Height ):	25,00 × 22,80 × 13,80 cm
