Walther Werke connection distribution cabinet 44kVA w.meter position WAV0135R1 NEW

Item condition: New and in original packaging

Manufacturers: Walther-Werke#
EAN: 4015609067909
Heiz24 article number: SP5622064
TARIC: 85371098
Country of origin: DE
Category: NEW

€ 2.675,80

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 7 Workdays (DE - foreign countries differ)

Pcs.

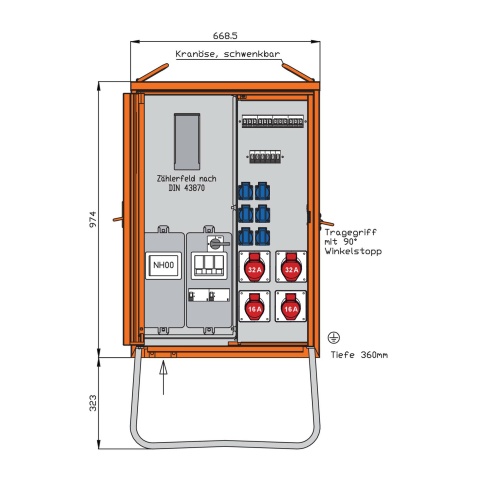

Connection distribution cabinet Connection capacity: 44kVA according to IEC61439-4 and DIN/VDE 43868/1 Enclosure (H14) made of electrolytically galvanised sheet steel with heavy metal-free plastic paint Colour: RAL 2004 -pure orange- with single door, spring latch for padlock and recessed grip with crane lugs and side carrying handles incl. hot-dip galvanised base frame with eyelets for ground pegs Installations up to and including RCD circuit breaker in insulated housing Protection class: IP 44 Measuring device Protection class: IP 54 Size approx.: 974 x 669 x 360mm / H-W-D + base frame height approx.323mm Connection: 1 NH00 fuse switch-disconnector 80A with 10-50qmm terminals Measurement: 1 DS meter position without meter according to DIN 43870/2 Outgoing feeder / fuse protection: 1 circuit breaker 3P 63A with thermal-magnetic release 1 RCD circuit breaker 4P 63A/30mA -B- 2 CEE surface-mounted boxes 32A 5P 400V 6h each with 1 miniature circuit breaker (MCB) 3P 32A -C- 2 CEE-Socket outlets 16A 5P 400V 6h with 1 circuit breaker (MCB) 3P 16A -C- 1 RCD circuit breaker 4P 40A/30mA -A- 6 earthed socket outlets 16A 2P 230V with 1 circuit breaker (MCB) 1P 16A -C-

PDF

Montageanleitung

Montageanleitung

Item information	Value
Version:	Anschlussverteilerschrank
Protection class (IP):	IP44
Height:	974 mm
Enclosure material:	Stahlblech
Number of SCHUKO sockets:	6
Wide:	669 mm
Depth:	683 mm
Connected load:	44 kVA
Rated voltage:	230/400 V
Rated current:	63 A
Main switch rated current:	63 A
Number of poles Main switch:	3
Number of counter fields:	1
Main switch:	Leistungsschalter
Residual current type:	B
Number of residual current circuit breakers 30 mA:	2
Number of CEE sockets 16 A / 400 V / 5-pole:	2
Number of CEE sockets 32 A / 400 V / 5-pole:	2
Number of circuit breakers:	10
Emergency switch:	nein
Shipping weight:	77,00 kg
Item weight:	52,00 kg
Dimensions ( Length × Width × Height ):	120,00 × 80,00 × 143,70 cm
