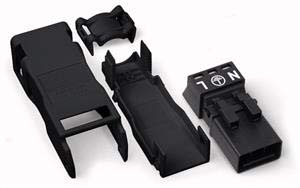

WAGO GmbH & Co. KG Plug 890-133 NEW

Item condition: New and in original packaging

€ 175,39

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Please note the permissible order quantity of 1 Pcs..

Plug
with strain relief housing
3-pole
1.50 mm²
white

Item information	Value
Version:	Stecker
Protection class (IP):	IP20 IP40
Height:	14 mm
Halogen-free:	Ja
Enclosure material:	Polyamid (PA)
Connection type:	Federzuganschluss
Number of poles:	3
Wide:	17,9 mm
Length:	63,6 mm
With strain relief:	ja
Cable diameter:	4,5..10 mm
Rated voltage:	250 V
Rated current:	16 A
Rated surge voltage:	4 kV
Pollution level:	3
Locking type:	separat
Connection cross-section (solid):	0,25..1,5 mm²
Connection cross-section (fine-stranded):	0,25..1,5 mm²
Number of connections per pole:	1
Fire load:	0,02444 kWh
Colour of coding/contact insert:	weiß
Contact material:	sonstige
Max. Continuous temperature resistance contact part:	85 °C
Mechanical coding:	ja
Surface treatment contacts:	sonstige verzinnt
Pole marking:	L, N, PE
Contact resistance:	1 mOhm 3 mOhm
Max. Continuous temperature resistance Strain relief:	105 °C
Shipping weight:	0,01 kg
Item weight:	0,01 kg
Dimensions ( Length × Width × Height ):	19,20 × 12,80 × 12,40 cm
