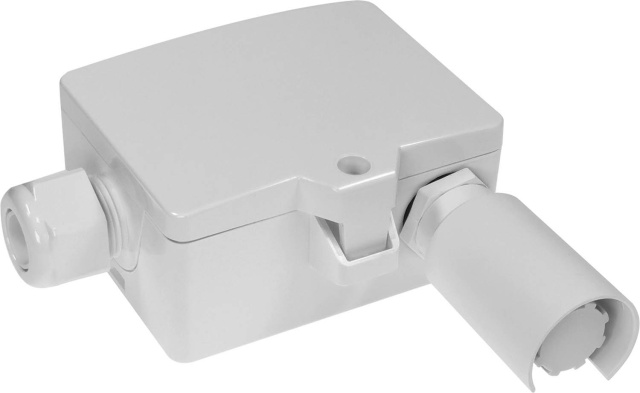

Application/type: Outdoor sensor
Intended use: Measurement value acquisition
Measured variables: Temperature, relative humidity, absolute humidity, enthalpy, dew point
Interface: Active, passive, 0..5 V, 0...10 V
Configuration: Jumper
Sensor: Ni1000TK5000
Output voltage: 2x 0..10 V or 0..5 V, adjustable via jumper, min. load 5 kΩ
Temperature application range (°C): -20..+70
Output signal temperature: Scaling analogue output, -20..+80 °C (standard setting), selectable from 4 temperature ranges -40..+60 | 0..+50 | -20..+80 | -15..+35 °C, adjustable at the transmitter
Humidity application range: max. 85% rH not permanently condensing
Temperature accuracy: ±0.3 K (typ. at 21 °C), in standard measuring range, potentiometer for offset adjustment
Measuring range humidity: 0..100% rH without condensation, 0..85 KJ/kg enthalpy, 0..50 | 0..80 g/m³ absolute humidity, 0..+50 | -20..+80 °C dew point, adjustable at the transmitter
Accuracy humidity: ±2% between 10..90% rH (typ. at 21 °C)
Power supply: 15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV
Power consumption: typ. 0.4 W (24 V =), 0.8 VA (24 V ~)
Material in contact with medium: sensor tube, PC, pure white, humidity length 53 mm, with filter stainless steel wire mesh
Housing:uSE-M, impact and break-proof housing with hinged cover, PC
Colour: pure white
Protection class: IP65, according to DIN EN 60529
Connection: removable cable entry Flextherm M20 for cables with Ø=4.5..9 mm, removable plug-in terminal, max. 2.5 mm²
Scope of delivery: incl. mounting base USE-M enclosure pure white, incl. mounting set (screws and accessories), incl. Sun/rain protection PC, white
Unit length (mm): 85
Unit width (mm): 118
Unit height (mm): 45
Option enclosure: LCD 29x35 mm, RGB backlighting
