"Fig. similar. , errors in texts and images excepted."

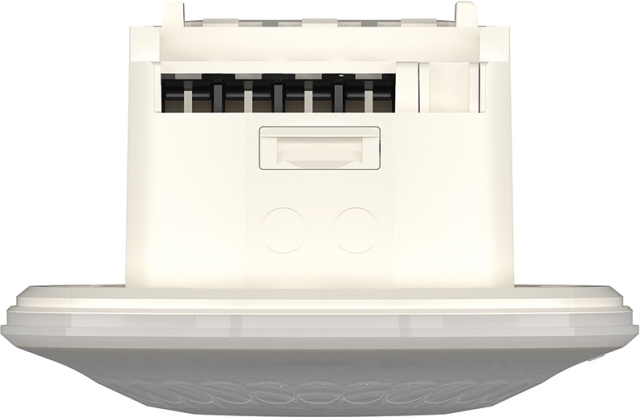

Theben presence detector ceiling mounting LUXA103S360-1H NEW

Item condition: New and in original packaging

Manufacturers: Theben#
EAN: 4003468101735
Heiz24 article number: SP6523331
TARIC: 85365080
Country of origin: CN
Category: NEW

€ 77,89

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

17 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 17 Pcs. we can order for you

Pcs.

Passive infrared presence detector for flush or recessed ceiling mounting, Circular detection area 360°, Diameter 12 m, (113 square metres) at 3 m mounting height (walking across), Diameter 5 m, (20 square metres) at 3 m mounting height (sitting), 1 channel light (relay 230 V), Can also be used in damp rooms and outdoors thanks to protection class IP 54 (detection area outdoors 8 metres in diameter), Can be remote-controlled, Parallel connection with other LUXA 103 or theMura Slave possible, Switching capacity optimised for LEDs up to 400 W, Semi- or fully-automatic operation, Integrated push-button input, With pulse function, teach-in function, test function and staircase lighting function, Area restriction possible with cover clips, Housing colour white

Item information	Value
Version:	Präsenzmelder
Surface protection:	unbehandelt
Colour:	weiß
Protection class (IP):	IP54
Material grade:	Thermoplast
Height:	62 mm
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Voltage type:	AC
Connection type:	Steckklemme
Material:	Kunststoff
Surface finish:	matt
RAL number (similar):	9010
Rated voltage:	230 V
Suitable for wall mounting:	nein
Suitable for ceiling mounting:	Ja
Impact resistance:	IK04
Constant light control:	nein
Antibacterial treatment:	nein
Wide:	80 mm
Depth:	80 mm
Diameter:	80 mm
Temperature:	-25..55 °C
Frequency:	50 Hz
Installation depth:	50 mm
Response brightness adjustable:	ja
Max. Duty cycle:	30 min
Extension input:	ja
Teach function for response brightness:	ja
Animal track:	nein
Installation diameter:	60 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Max. Switching capacity LED:	400 W
Min. depth of the device box:	61 mm
Max. Switching capacity:	2300 W
Response sensitivity adjustable:	ja
Suitable for C-load:	nein
Switch-off delay:	15 s
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	5..1000 lx
Detection field diameter on floor:	113 m
Angle of coverage horizontal:	0..360 °
Remote controllable:	ja
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	10 A
Max. Presence range:	50 m²
Max. Range frontal:	6 m
Max. Range to one side:	6 m
Min. duty cycle:	15 s
Min. inrush current:	0,01 A
With DALI interface:	nein
With remote control:	nein
With signal unit:	ja
Optimum mounting height:	3 m
Scanning angle:	360 °
Sensor type:	passiv Infrarot
Staircase monitoring:	ja
Bypass switch:	ja
Undercrawl protection/backfield monitoring:	nein
Networkable:	ja
Forced shutdown:	nein
Forced switching on:	nein
Shipping weight:	0,13 kg
Item weight:	0,13 kg
Dimensions ( Length × Width × Height ):	9,00 × 8,30 × 6,50 cm
