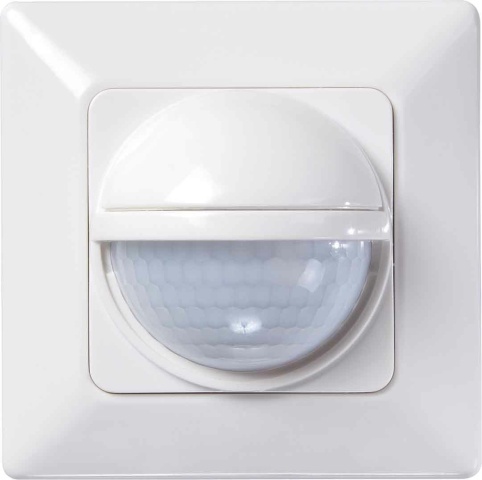

Theben motion detector LUXA 103-200 T NEW

Item condition: New and in original packaging

Manufacturers: Theben#
EAN: 4003468103050
Heiz24 article number: SP6400540
TARIC: 85365080
Country of origin: CN
Category: Bewegungsmelder Unter-/Aufputz

€ 81,63

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

12 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 12 Pcs. we can order for you

Pcs.

Retrofit motion detector for flush wall mounting, detection range can be limited by plug-in segments, can be used as a replacement for light switches or changeover switches, fits 50x50 mm cover frames, integrated manual switch ON/AUTO/OFF, automatic switching depending on brightness and motion, mixed light measurement, triac output light, frame white 80x80 mm, with screw terminals

Item information	Value
Version:	Bewegungsmelder
Surface protection:	unbehandelt
Colour:	weiß
Protection class (IP):	IP40
Material grade:	Thermoplast
Height:	80 mm
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	nein
Voltage type:	AC
Connection type:	Schraubklemme
Material:	Kunststoff
Surface finish:	glänzend
RAL number (similar):	9010
Rated voltage:	230 V
Suitable for wall mounting:	Ja
Suitable for ceiling mounting:	nein
Impact resistance:	IK04
Constant light control:	nein
Antibacterial treatment:	nein
Wide:	80 mm
Depth:	65 mm
Diameter:	50 mm
Temperature:	0..45 °C
Frequency:	50 Hz
Installation width:	50 mm
Installation depth:	32 mm
Response brightness adjustable:	ja
Max. Duty cycle:	30 min
Extension input:	nein
Teach function for response brightness:	ja
Animal track:	nein
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Min. depth of the device box:	46 mm
Max. Switching capacity:	400 W
Response sensitivity adjustable:	ja
Suitable for C-load:	nein
Switch-off delay:	1800 s
Dimming function with dimmer insert:	nein
Alarm function:	nein
Response brightness:	10..1000 lx
Detection field diameter on floor:	16 m
Angle of coverage horizontal:	0..200 °
Remote controllable:	nein
Suitable for wireless transmission:	nein
HVAC control:	nein
Max. Inrush current:	2 A
Max. Range frontal:	3 m
Max. Range to one side:	8 m
Min. duty cycle:	20 s
Min. inrush current:	0,1 A
With DALI interface:	nein
With remote control:	nein
With signal unit:	nein
Optimum mounting height:	1,2 m
Scanning angle:	200 °
Sensor type:	passiv Infrarot
Staircase monitoring:	ja
Bypass switch:	nein
Undercrawl protection/backfield monitoring:	nein
Networkable:	nein
Forced shutdown:	nein
Forced switching on:	nein
Shipping weight:	0,21 kg
Item weight:	0,21 kg
Dimensions ( Length × Width × Height ):	8,50 × 9,40 × 8,50 cm
