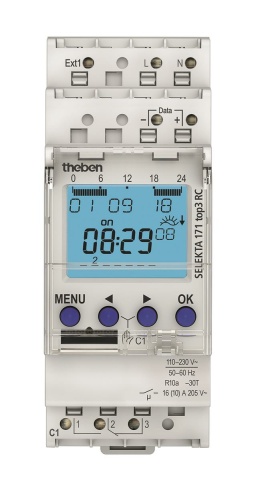

Theben digital timer Auto+Weekprog. 1K SELEKTA 171 top3 RC NEW

"Fig. similar. , errors in texts and images excepted."

Theben digital timer Auto+Weekprog. 1K SELEKTA 171 top3 RC NEW

Item condition: New and in original packaging

Manufacturers: Theben#
EAN: 4003468170168
Heiz24 article number: SP5714605
TARIC: 91070000
Country of origin: DE
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 202,00

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

5 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 5 Pcs. we can order for you

Pcs.

Digital astro time switch for DIN rail, 1 channel, weekly programme, DCF or GPS radio control possible with external antenna, Astronomical switching function, Position data programmable via coordinates or country-city list, Astro pulse, 3 different twilight ranges adjustable, External input, 3 special programmes, Width 2 TE, App programming possible, Secure transmission via optional Bluetooth Low Energy OBELISK top3, Maximum security against tampering, Time switch programmes can only be transmitted from the app to the clock if the Bluetooth OBELISK top3 is inserted in the clock, 100 % compatible with top2, 600 watts LED power, 800 amps/200 microseconds inrush current, 0.8 watts stand-by power, DuoFix plug-in terminals, Power reserve and programmed summer/winter time changeover, OBELISK interface for PC programming

Item information	Value
Protection class (IP):	IP20
Height:	128 mm
Mounting type:	DIN-Schiene
Width in units of division:	2
Supply voltage type:	AC
Wide:	35 mm
Depth:	60 mm
Supply voltage:	110..240 V
Number of channels:	1
Contact design:	Wechsler (NO/NC)
Suitable for manual operation:	ja
24 h programme:	ja
60 min programme:	ja
Number of memory locations:	84
Astro programme:	ja
Automatic summer/winter time changeover:	ja
Operating hours counter:	ja
External programming:	ja
External push button input:	ja
Holiday programme:	ja
Frequency of the supply voltage:	50..60 Hz
Radio-controlled:	ja
Radio controlled (DCF77):	ja
Accuracy per day:	0,25 s
Power reserve in years:	10
GPS:	ja
Impulse programme:	nein
Annual programme:	nein
Shortest switching time channel 1:	1 min
With memory card:	nein
Rated switching current at 250 V AC:	16 A
Mains synchronous:	nein
Potential-free switching contact:	ja
Crystal-controlled:	ja
Circuit preselection:	ja
Text guidance in the display:	ja
Weekly programme:	ja
Cycle programme:	nein
Max. Switching capacity LED:	600 W
Number of contacts:	1
Shipping weight:	0,14 kg
Item weight:	0,13 kg
Dimensions ( Length × Width × Height ):	10,50 × 8,00 × 4,80 cm
