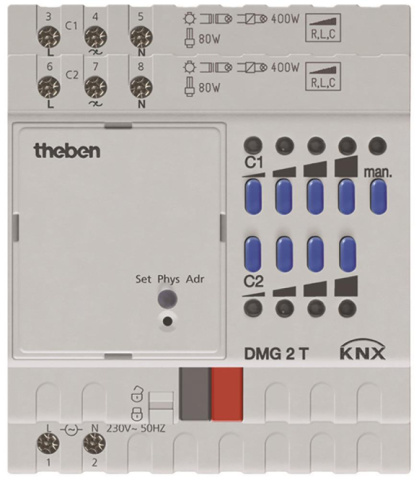

THEB KNX dimming actuator DMG 2 T KNX 2-gang basic device NEW

Item condition: New and in original packaging

Manufacturers: Theben AG
EAN: 4003468490006
Heiz24 article number: ZD3791143
TARIC: 85371091
Country of origin: DE
Category: Sensor-Aktor-Boxen

€ 275,35

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 6 Workdays (DE - foreign countries differ)

1 in the supplier warehouse

Estimated delivery time (may vary): 4 - 6 workdays (DE - foreign countries differ)

more than 1 we can order for you

KNX universal dimming actuators 2 to 6 channels MIX2
-KNX universal dimming actuator 2-fold, expandable with DME 2 T up to 6 channels, or with other MIX expansion devices, dimming range 0-100 %, maximum load: 2x400 W/VA or 1x800W/VA, when using the channels as control output, up to 5 dimming boosters DMB 1 T with max. 5x400 W/VA power per channel can be controlled. For dimming incandescent lamps, low-voltage and high-voltage halogen lamps, dimmable LEDs and energy-saving lamps.
-Bus system KNX yes
-Bus system KNX-RF (radio) no
-Bus system radio bus no
-Bus system LON no
-Bus system Powernet no
-Radio bidirectional no
-Dimming actuator version
-Mounting type REG
-Width in pitch units 4
-With bus coupling yes -With bus connection yesWith bus coupling yes
-Removable bus module yes
-On-site/manual operation yes
-With LED display yes
-Number of outputs 2
-Output power 5
- 400 W
-Additional power can be used yes
-Load type universal and LED retrofit
-Max. Switching capacity LED 400 W
-Voltage 230
- 230 V

Item information	Value
Shipping weight:	0,28 kg
Item weight:	0,28 kg
Dimensions ( Length × Width × Height ):	10,00 × 8,00 × 8,00 cm
