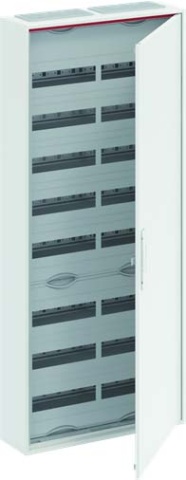

Striebel&John Small distribution board surface-mounted 2FB, 8-row CA28V NEW

Item condition: New and in original packaging

Manufacturers: STRIEBEL_&_JOHN#
EAN: 4011617521891
Heiz24 article number: SP5623213
TARIC: 85381000
Country of origin: DE
Category: Electric

€ 852,37

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 7 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 4 - 7 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

The small distribution boards of the ComfortLine Compact-A series are designed for surface mounting. The distributors are used, for example, in the interior of residential, functional or industrial buildings. The enclosures are supplied with a frame and door and have top, bottom and side cable entry options. Also standard for each enclosure is the cable catch facility at the top and bottom, which considerably simplifies cable routing. Thanks to the QMS snap-in technology, the installation of distribution panels and combination sets can be individually realised according to the customer's wishes. The enclosures comply with protection class IP44 and have a VDE test mark. Colour white RAL 9016 and powder-coated.

Item information	Value
Colour:	weiß
Protection class (IP):	IP44
Height:	1250 mm
Mounting type:	Aufputz
Enclosure material:	Stahl
RAL number:	9016
Width in units of division:	24
With lock:	Ja
Number of rows:	8
Wide:	550 mm
Depth:	160 mm
Installation height:	0 mm
Lid version:	geschlossen
Interior depth:	152 mm
Attachment option:	ja
Installation width:	0 mm
Installation depth:	0 mm
With mounting plate:	nein
Cover type:	Tür
Transparent lid/door:	nein
Type of closure:	sonstige
DIN rail:	ja
Earth terminal block:	ja
Neutral conductor terminal block:	ja
Signal passing door:	nein
EMC version:	nein
Shipping weight:	25,19 kg
Item weight:	24,23 kg
Dimensions ( Length × Width × Height ):	16,50 × 55,60 × 125,20 cm
