"Fig. similar. , errors in texts and images excepted."

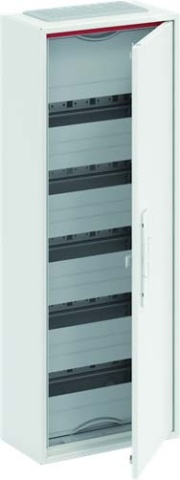

Striebel&John Small distribution board surface-mounted 1FB, 5-row CA15V NEW

Item condition: New and in original packaging

Manufacturers: STRIEBEL_&_JOHN#
EAN: 4011617521822
Heiz24 article number: SP5623145
TARIC: 85381000
Country of origin: DE
Category: Zählerplatz- und Verteilersysteme

€ 243,35

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

The small distribution boards of the ComfortLine Compact-A series are designed for surface mounting. The distributors are used, for example, in the interior of residential, functional or industrial buildings. The enclosures are supplied with a frame and door and have top, bottom and side cable entry options. Also standard for each enclosure is the cable catch facility at the top and bottom, which considerably simplifies cable routing. Thanks to the QMS snap-in technology, the installation of distribution panels and combination sets can be individually realised according to the customer's wishes. The enclosures comply with protection class IP44 and have a VDE test mark. Colour white RAL 9016 and powder-coated.

Item information	Value
Colour:	weiß
Protection class (IP):	IP44
Height:	800 mm
Mounting type:	Aufputz
Enclosure material:	Stahl
RAL number:	9016
Width in units of division:	12
Number of rows:	5
Wide:	300 mm
Depth:	160 mm
Installation height:	0 mm
Lid version:	geschlossen
Interior depth:	152 mm
Attachment option:	ja
Installation width:	0 mm
Installation depth:	0 mm
With mounting plate:	nein
Cover type:	Tür
Transparent lid/door:	nein
DIN rail:	ja
Earth terminal block:	ja
Neutral conductor terminal block:	ja
Shipping weight:	11,27 kg
Item weight:	10,83 kg
Dimensions ( Length × Width × Height ):	16,50 × 30,60 × 80,20 cm

There are no reviews yet.
