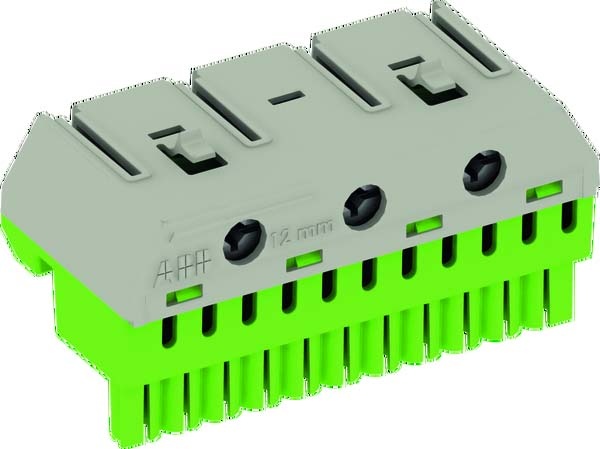

Striebel&John PE terminal block 11x4 +3x25qmm ZK113G NEW

Item condition: New and in original packaging

Manufacturers: STRIEBEL_&_JOHN#
EAN: 4011617627593
Heiz24 article number: SP0638445
TARIC: 85369010
Country of origin: NL
Category: Distribution and securing material

€ 9,16

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

PE Quick plug-in terminal for Quick plug-in support, tool-free assembly due to simple plug-in and latching technique, clear colour coding: PE = yellow-green, flexible terminal system, number of terminals: 11 x 1.5 - 4 mm² (spring clamp technique) + 3 x 2.5 to 25 mm² (screw connection technique), external dimensions H x W x D in mm: 32 x 65 x 31, easy labelling of the terminal points (DIN VDE 0603 Part 1) with pre-printed, self-adhesive number strips.

Item information	Value
Colour:	grün
Transparent:	nein
Rated voltage:	230 V
Number of clamping points:	14
With operating levers:	nein
Suitable for solid conductors:	Ja
Suitable for flexible conductors:	Ja
Suitable for multi-wire conductors:	Ja
Rated current:	63 A
AWG range:	4..16
Nominal cross-section:	1,5..25 mm²
Cable diameter:	25 mm
Conductor cross-section flexible (fine-stranded) with wire end ferrule:	1,5..25 mm²
Conductor cross-section rigid (solid/multi-stranded):	1,5..25 mm²
Shipping weight:	0,07 kg
Item weight:	0,06 kg
Dimensions ( Length × Width × Height ):	16,00 × 17,00 × 3,00 cm
