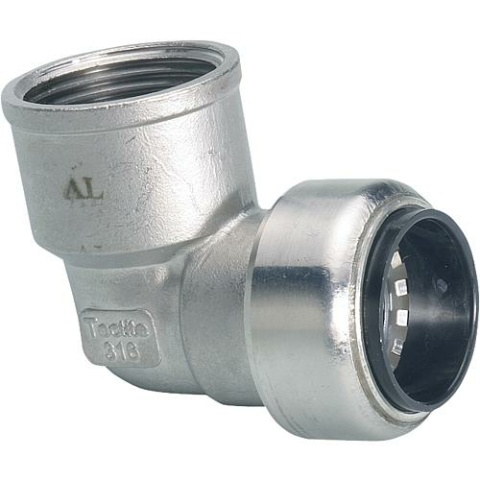

Aalberts stainless steel push-fit transition elbow 90° (i/IG) 22 x 3/4"" TS090G2234 NEW

Item condition: New and in original packaging

Manufacturers: Aalberts#
EAN: 5022050256218
Heiz24 article number: WS9901040
TARIC: 73072290
Country of origin: DE
Category: Fittings

€ 31,85

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

7 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 7 Pcs. we can order for you

Pcs.

- One system for drinking water, heating, industrial, cooling and compressed air systems (oil-free)
- Suitable for drinking water in accordance with the UBA positive list
- Can be flush-mounted
- Temperature resistance: -20°C to +90°C
- Pressure resistance: 10 bar
- O-ring made of EPDM
- Not suitable for gas and solar installations
85% labour saving at
compared to pressing
No heavy and expensive
tools required for installation
Tectite can be dismantled and reused at any time
!
With minimum tool requirements
No contour discussion, therefore
no risk of confusion,
no pressing errors
Pull-out forces and pressure resistance
far above DVGW requirements make Tectite a safe installation
Permanently leak-proof (DIN 1988),
can therefore also be used under plaster
Leaks before the pipe passes the
sealing ring
Suitable for all drinking water
(in accordance with the new German Drinking Water Ordinance and DIN 50930-6)
Customised, DVGW
range in dimensions from
12 to 54 mm for copper and
15 to 54 mm for stainless steel
Tectite also offers the solution for quick and permanent
repair of damaged pipes
:
The Tectite sliding sleeve
Features for heating and sanitary
Type of push-fit connection Positive and longitudinally force-fit, permanently tight pipe
connection (in accordance with DVGW W534) with stainless steel pipes
in accordance with DVGW W541
Material stainless steel with material number 1.4401
Sealing type ethylene-propylene-monomer (EPDM) sealing element.
Suitable for cold/hot water, complies with KTW-
recommendations and DVGW worksheet W 270
Operating temperature -20°C to 85°C (DIN 1988)
Short-term up to max. 120°C DIN 4751
Operating pressure Max. 16 bar at 30°C
(safety: test pressures up to 40 bar)
Dimensions 15, 18, 22, 28, 35, 42, 54 mm

PDF

99_010_12--ZFT-01-de.pdf

Zertifikat

99_010_12--ZFT-01-de.pdf

99_010_37--DBL-01-de.pdf

Datenblatt

99_010_37--DBL-01-de.pdf

Item information	Value
Brand:	Aalberts
EAN:	5022050256218
Size:	22 mm x DN 20 (3/4")
Manufacturer no.:	TS090G2234
Shipping weight:	0,13 kg
Item weight:	0,13 kg
Dimensions ( Length × Width × Height ):	5,60 × 3,30 × 4,80 cm
LaNr.:	99 010 40
