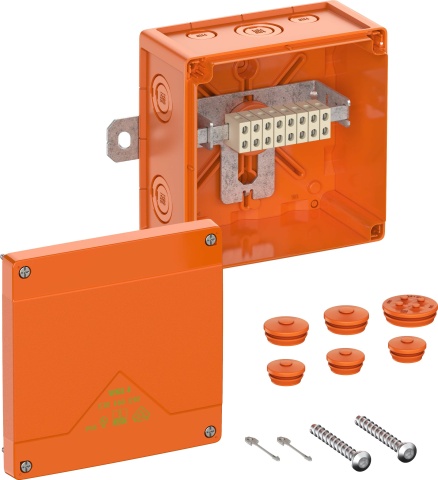

Spelsberg junction box WKE 4-8 x 1.5qmm NEW

Item condition: New and in original packaging

Manufacturers: Spelsberg#
EAN: 4013902631353
Heiz24 article number: SP0329795
TARIC: 85369095
Country of origin: DE
Category: Screws Accessories Cables Plugs

€ 106,18

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

19 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 19 Pcs. we can order for you

Pcs.

Cable junction box, with degree of protection IP66, Ui=450V AC, to VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), UL-EU (EN 62208), knock-out membranes, M20/M25/M32, (2 on the rear, 12 on the side), external fixing points, with electrical functional integrity E30-E90 to DIN 4102 Part 12. Halogen-free housing made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, terminal holder freely positionable, orange, junction box 8-pole 0.5-2.5mm², junction box 8-pole 0.5-1.5mm², number of clampable conductors per pole: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 2.5² Dimensions: 150 x 150 x 85mm Accessories included: cover captive lock, screw anchor, 3 double membrane sockets IP66 M20 sealing range 7-12mm, 2 double membrane sockets IP66 M25 sealing range 9-16mm, 1 double membrane socket IP66 M32/4 sealing range 4 x 3.5-6mm

PDF

Montageanleitung

Montageanleitung

Montageanleitung

Maßzeichnung

Maßzeichnung

Item information	Value
Surface protection:	unbehandelt
Colour:	orange
Protection class (IP):	IP66
Form:	quadratisch
Mounting type:	Wand-/Deckenmontage
Halogen-free:	Ja
Weatherproof:	Ja
Material:	Kunststoff
Mounting:	Klemme
For Ex-Zone Gas:	ohne
For Ex-Zone dust:	ohne
Wide:	150 mm
Length:	150 mm
Depth:	85 mm
Function maintenance:	E90
Operating temperature:	-35..55 °C
Explosion-proof version:	nein
Number of introductions:	12
Lid version:	sonstige
Lid attachment:	geschraubt
Introduction from behind:	ja
With shielding:	nein
Sealable:	ja
Transparent lid:	nein
Bayable:	ja
Type of housing feedthrough:	Vorprägung
Rated insulation voltage Ui:	450 V
Max. Conductor cross-section:	2,5 mm²
Supplied with potting compound:	nein
Mounting in the ground:	nein
Mounting under water:	nein
Pourable:	nein
Protection class (NEMA):	sonstige
Shipping weight:	0,73 kg
Item weight:	0,73 kg
Dimensions ( Length × Width × Height ):	15,00 × 15,00 × 8,50 cm
