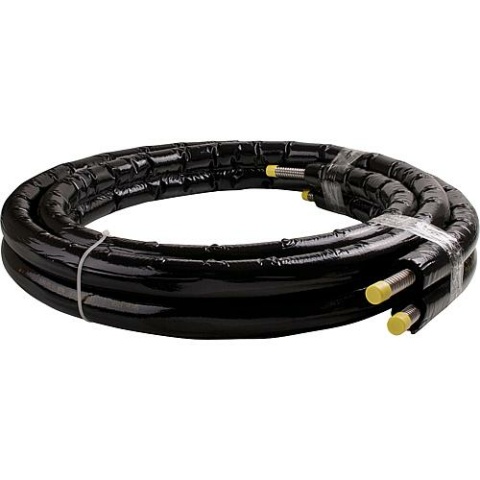

AYVAZ solar flex pipe 2 in 2 DN 25, 5m with insulation and sensor cable NEW

"Fig. similar. , errors in texts and images excepted."

AYVAZ solar flex pipe 2 in 2 DN 25, 5m with insulation and sensor cable NEW

Item condition: New and in original packaging

Manufacturers: AYVAZ
Heiz24 article number: WS9701659
TARIC: 83071000
Country of origin: BG
Category: Tubes

€ 136,35

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 4 - 7 Workdays (DE - foreign countries differ)

38 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 4 - 7 workdays (DE - foreign countries differ)

more than 38 Pcs. we can order for you

Pcs.

- Pre-insulated, with high-temperature insulating hose
- The protective film prevents damage in difficult installation situations
- Closed-cell structure of the insulation protects against moisture penetration
- Suitable for QuickFix-Pro - metal-sealing screw connections

Technical data:
- Material corrugated pipe: stainless steel 1.4404 (AISI316I)
- Operating pressure (bar), at 20°C: DN12 : 21
- DN16 : 16
DN20 and DN25 : 10
- Insulation material: synthetic rubber
- Insulation thickness (mm): 13
- Application temperature (°C): up to 150
- Thermal conductivity of insulation: 0.038 W/m
Stainless steel corrugated conduit:
- Material AISI316L, DIN 1.4404
- Nominal pressure PN at 20°C (bar): DN12 (21), DN16 (16), DN20 and DN25 (10)
High-temperature insulation:
- UV-resistant
- Made of synthetic rubber
- Operating temperature: max. +150°C (+175°C for short periods)
- Insulation thickness: 13 mm
- Thermal conductivity: 0.038 W/mK
- Fire behaviour: normally flammable (DIN 4102-B2)
- Sensor cable: 2x 0.50 mm², silicone-insulated, resistant to continuous temperatures up to +180°C

PDF

97_004_85--DBL-01-de.pdf

Datenblatt

97_004_85--DBL-01-de.pdf

Item information	Value
PU:	Ring á 5 m
Shipping weight:	7,36 kg
Item weight:	7,36 kg
Content:	5,00 m
Dimensions ( Length × Width × Height ):	82,50 × 76,50 × 21,00 cm
LaNr.:	97 016 59
