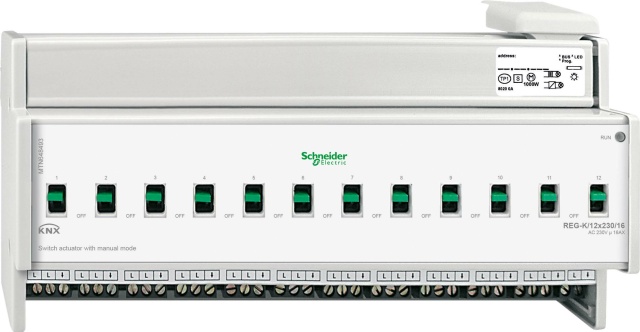

Schneider Electric switch actuator REG-K/12x230/16 MTN648493 NEW

Item condition: New and in original packaging

Manufacturers: Schneider_Electric##
EAN: 3606485011806
Heiz24 article number: SP6522460
TARIC: 85371098
Country of origin: DE
Category: Installations-Bus-Systeme

€ 412,95

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

2 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 2 Pcs. we can order for you

Pcs.

Schneider Electric KNX. For independent switching of 12 loads via normally open contacts. All 230 V switching outputs can be operated manually with hand switches. With integrated bus coupling unit. The mains connection is made via screw terminals, with two of the L connections bridged internally. A green LED indicates readiness for operation after the application has been loaded. For mounting on top-hat rails TH35 according to EN 60715, The bus connection is made via a bus connecting terminal, a data rail is not required, Rated voltage: AC 230 V, 50-60 Hz Each switching contact:. Switching current: 16 A, cos Phi 0.6 AC1 operation: max 16 A AC3 operation: max 10 A AC5 operation: max 16 A Max direct current: 16 A/ 24V DC, Life expectancy output: mechanical: >106 AC1/AC3/AC5 operation: >3x104. 230V, 1A ohmic: >8x105. Incandescent lamps: AC 230 V, max. 3600 W. Halogen lamps: AC 230 V, max 2500 W Fluorescent lamps: AC 230 V, max 2500 VA. Capacitive load: AC 230 V, 16 A, ma 200 uF Minimum switching capacity: 100 mA/12V AC/DC Maximum peak inrush current: 150us: 600 A 250us: 480 A 600us: 300 A Unit width: 12 TE corresponds to approx. 216 mm. Scope of delivery: With bus connection terminal and cable cover.

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Max. Switching current:	16 A
Width in units of division:	12
Output power:	3600 W
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	nein
Rated current:	16 A
With LED display:	nein
Rated operating voltage:	230 V
Max. Switching capacity:	3600 W
Bus module removable:	nein
Suitable for C-load:	ja
Max. Number of switching outputs:	12
Modular expansion option:	nein
Different phases can be connected:	ja
On-site/manual operation:	ja
Shipping weight:	0,89 kg
Item weight:	0,89 kg
Dimensions ( Length × Width × Height ):	28,00 × 12,30 × 8,00 cm
