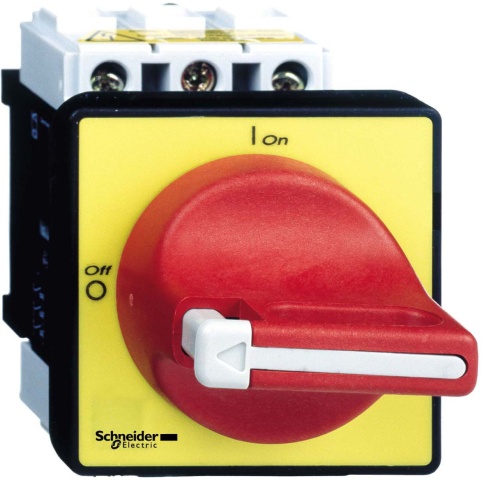

Schneider Electric emergency stop main switch actuator rt/ge VCF3 NEW

Item condition: New and in original packaging

Manufacturers: Schneider_Electric##
EAN: 3389110165999
Heiz24 article number: SP0748400
TARIC: 85365080
Country of origin: CZ
Category: Industrial Technology/Automation

€ 71,78

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Emergency stop/main switch, 3P, 690V, 50A, In enclosure. Size_A 63 A, fixing 4 screws, front plate 60 x 60 mm. Complete unit, 3-pole, IP 65, with rotary drive. For mounting in the switch cabinet door. Red handle, lockable with 3 padlocks DM 4 mm to DM 8 mm (supplied without padlocks). Switch position O I, front plate yellow.

Item information	Value
Number of poles:	3
Design of the actuating element:	Drehknopf
Protection class (IP), front side:	IP65
Main switch version:	Ja
Design as maintenance/repair switch:	nein
Safety switch version:	nein
Design as EMERGENCY OFF device:	Ja
Motor drive optional:	nein
Motor drive integrated:	nein
Voltage release optional:	nein
Suitable for floor mounting:	nein
Suitable for manifold installation:	Ja
Suitable for intermediate construction:	nein
Connection type main circuit:	Schraubanschluss
Lockable:	Ja
Rated uninterrupted current Iu:	63 A
Conditional rated short-circuit current Iq:	10 kA
Max. Rated operating voltage Ue at AC:	690 V
Rated short-time withstand current Icw:	0,756 kA
Reversing switch version:	nein
Rated operating power at AC-23, 400 V:	22 kW
Rated operating power at AC-3, 400 V:	18,5 kW
Rated operating voltage:	690 V
Rated uninterrupted current at AC-21, 400 V:	63 A
Actuator colour:	rot
Suitable for front mounting 4-hole:	ja
Suitable for front mounting Central:	nein
Device design:	Einbaugerät Festeinbautechnik
Switching capacity at 400 V:	37 kW
Number of switches:	1
Rated uninterrupted current at AC-23, 400 V:	41,5 A
Shipping weight:	0,35 kg
Item weight:	0,35 kg
Dimensions ( Length × Width × Height ):	12,20 × 8,60 × 8,00 cm
