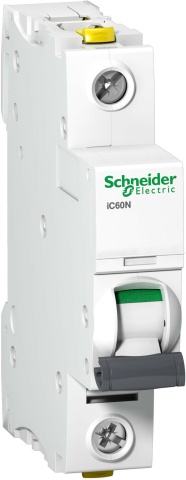

Schneider Electric circuit breaker 1P 16A B IC60N A9F03116 NEW

Item condition: New and in original packaging

Manufacturers: Schneider_Electric##
EAN: 3606480439698
Heiz24 article number: SP5706693
TARIC: 85362010
Country of origin: IN
Category: Sicherungsautomaten, SHL,FI und sonst. Einbaugeräte

€ 3,60

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

271 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 271 Pcs. we can order for you

Pcs.

Acti 9 iC60N miniature circuit-breaker, 6kA (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). 1-pole, rated current 16A, B characteristic, operating voltage (Ue) 220-240V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cable and pin comb rail on the top and bottom of the device. Snap action for low-wear switching of the contacts. Travelling insulation cover. Actuation of the top-hat rail fastening element on the front of the device for tool-free installation and easy accessibility for the user. With mechanical fault indicator on the front (VisiTrip) to indicate tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the miniature circuit-breaker, with green indication to ensure that there is no voltage on the outgoing side. IP20 terminals, travelling insulation cover. Double connection terminal from above or below. Easy removal of the individual device when the phase busbar is installed, thanks to the fixing element accessible from the front. Tripping unit technology - thermomagnetic. Can be combined with the RCDs from the Acti 9 iID series and the Vigi iC60 RCD block. Additional stackable auxiliary modules (optional)- display of switching position, fault tripping, shunt opening release, undervoltage release, overvoltage release. Colour RAL 9003. iC60N miniature circuit-breakers comply with the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. This series is also VDE !

Item information	Value
Protection class (IP):	IP20
Voltage type:	AC/DC
Width in units of division:	1
Frequency:	50..60 Hz
Explosion-proof:	nein
Flush mounting:	nein
Connectable conductor cross-section solid:	1..25 mm²
Connectable conductor cross section stranded:	1..16 mm²
Rated voltage:	230 V
Rated insulation voltage Ui:	500 V
Installation depth:	44,5 mm
Rated current:	16 A
Release characteristics:	B
Pollution level:	3
Overvoltage category:	4
Number of fused poles:	1
Rated breaking capacity Icn according to EN 60898 at 230 V:	6 kA
Rated breaking capacity Icu according to IEC 60947-2 at 230 V:	10 kA
Rated impulse withstand voltage Uimp:	6 kV
Energy limitation class:	3
Switching neutral conductor:	nein
Number of poles (total):	1
Ambient temperature during operation:	-35..70 °C
Additional equipment possible:	ja
Shipping weight:	0,12 kg
Item weight:	0,12 kg
Dimensions ( Length × Width × Height ):	9,20 × 1,80 × 7,80 cm
