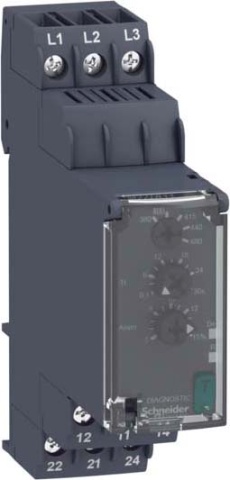

Schneider Electric Phase sequence relay RM22TA33 NEW

Item condition: New and in original packaging

Manufacturers: Schneider_Electric##
EAN: 3606480792151
Heiz24 article number: SP2103235
TARIC: 85364900
Country of origin: ID
Category: Industrial Technology/Automation

€ 104,57

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

3 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 3 Pcs. we can order for you

Pcs.

Zelio Control. This mains monitoring relay monitors three-phase mains (380-480 VAC) for phase sequence, phase failure and phase asymmetry (5-15%). Two relay changers are provided for signalling, which can be loaded up to 8 A. The limit value for the asymmetry and a switch-off delay for the output can be set. The settings are made via operating elements in the front, which can be protected against changes under a transparent cover. With an illuminated scale arrow, the setting of the potentiometers can be seen very clearly even from a distance. The diagnostic switch on the front allows the output relays to be switched off for testing the entire application. When the transparent cover is closed, the diagnostic switch is automatically reset. Three LEDs indicate the status. The construction width is 22.5 mm and mounting is on the top-hat rail. Power is supplied from the measuring circuit. The cable connection is made via screw terminals.

Item information	Value
Height:	90 mm
Wide:	22,5 mm
Depth:	73 mm
Voltage type for actuation:	AC
Design of the electrical connection:	Schraubanschluss
Number of contacts as changer:	2
Rated control supply voltage Us at AC 50 Hz:	380..480 V
Rated control supply voltage Us at AC 60 Hz:	380..480 V
With removable clamps:	nein
Max. permissible response delay time:	0 s
Min. adjustable response delay time:	0 s
Function asymmetry detection:	ja
Phase failure detection function:	ja
Phase sequence monitoring function:	ja
Overvoltage detection function:	nein
Undervoltage detection function:	nein
Max. permissible release delay time:	30 s
Min. adjustable release delay time:	0,1 s
Voltage measuring range:	304..576 V
Shipping weight:	0,10 kg
Item weight:	0,09 kg
Dimensions ( Length × Width × Height ):	9,50 × 8,20 × 2,60 cm
