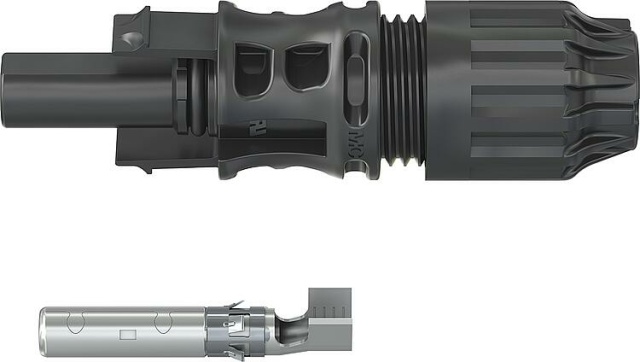

STÄUBLI Coupling bush, MC4-Evo 2PV-KBT4-EVO 2/10II-UR NEW

"Fig. similar. , errors in texts and images excepted."

STÄUBLI Coupling bush, MC4-Evo 2PV-KBT4-EVO 2/10II-UR NEW

Item condition: New and in original packaging

Manufacturers: STÄUBLI
Heiz24 article number: WS6215685
TARIC: 85389099
Country of origin: CH
Category: 0% USt. Möglichkeit für PV Artikel

from

€ 3,15

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

214 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 214 we can order for you

Configure

Solar subsidy 2023 for Germany - This Option ist not available in yout country, please go on with checkout

Please select only one component.

This Option ist not available in yout country, please go on with checkout € 0,00: -

Quantity: 1

Please use this Option to go on with checkout € 0,00

Quantity: 1

Your configuration

product/group		price
incl. 19% VAT , plus shipping costs

- Protection class mated: IP68 (1 m, 1 h) / IP65
- Protection class unplugged: IP2X
- Voltage max.: 1500 V
- Ambient temperature range: -40 - +85°C (TÜV/UL)
- Upper temperature limit: 115°C
- Category: CAT III
- Pollution degree: 3
- Contact resistance of connector max.0.2 mO
- Rated impulse voltage: 16 kV
- Connection type: Crimping
- Contact material: Copper, tin-plated
- Insulation material: PA
- Fire protection class: UL94:V-0
- Ammonia resistance (according to DLG)
- Salt spray test, severity level 6
- Original components of the MC4-Evo 2A series are extremely efficient even in a harsh working environment
- In addition, the system is characterised by a first-class rating, including: Approval for DC 1500 V (TÜV / UL / JET)

Item information	Value
Type:	PV-KBT4-EVO 2/10II-UR
Brand:	STÄUBLI
Cable ø [mm]:	6,4 - 8,4
Cable cross-section [mm²]:	10
max. current [A]:	69
Socket / Plug:	Buchse
Crimp opening [mm]:	6,5
Shipping weight:	0,01 kg
Item weight:	0,01 kg
Dimensions ( Length × Width × Height ):	7,20 × 3,00 × 3,00 cm
LaNr.:	62 156 85
