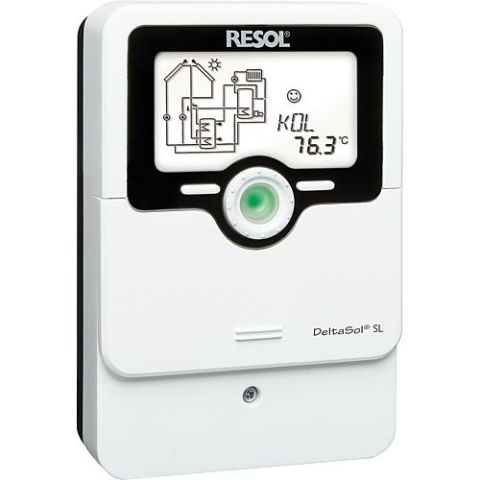

Resol DeltaSol SL differential temperature controller incl. 4 sensors 115 003 40 NEW

"Fig. similar. , errors in texts and images excepted."

Resol DeltaSol SL differential temperature controller incl. 4 sensors 115 003 40 NEW

Item condition: New and in original packaging

Manufacturers: Resol
Heiz24 article number: WS6100007
TARIC: 90321020
Country of origin: DE
Category: Controls

€ 516,90

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

6 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 6 Pcs. we can order for you

Pcs.

- For complex solar systems and solid fuel boilers
- For standard and high-efficiency circulation pumps with PWM signal
- With 4 inputs and 3 outputs
Technical data:
- Inputs: 4 temperature sensors Pt1000, Pt500 or KTY, 1 Grundfos Direct SensorTM (analogue) and 1 FlowRotor, 1 pulse input V40 (switchable to temperature sensor input Pt1000, Pt500 or KTY)
- Outputs: 3 solid-state relays, 1 potential-free low voltage relay and 2 PWM outputs (switchable to 0-10 V)
- Switching capacity: 1 (1) A 240 V~ (solid-state relay), 1 (1) A 30 V~ (potential-free relay)
- Total switching capacity: 3 A 240 V~
- Operating voltage: 100 ... 240 V~ (50 ... 60 Hz)
- Standby: 0.69 W
- Data interface: RESOL VBus®, MicroSD card slot, VBus® current output: 60 mA
- Housing: Plastic, PC-ABS and PMMA
- Mounting: Wall mounting, panel mounting possible
- Protection class: IP 20 / DIN EN 60529
- Protection class: I
- Dimensions (WxHxD): 110 x 166 x 47 mm

Scope of delivery:
- Incl. 4 sensors Pt 1000 (2x memory). 4 Pt 1000 sensors (2x storage tank/boiler sensor FRP6, 2x collector sensor FKP6)

Function:
- Operating hours counter
- Tube collector function
- Thermostat function
- Speed control
- Heat quantity measurement
- Balance and diagnosis function
- Function check in accordance with VDI 2169

PDF

61_000_07--DBL-01-de.pdf

Datenblatt

61_000_07--DBL-01-de.pdf

61_000_07--DBL-02-de.pdf

Datenblatt

61_000_07--DBL-02-de.pdf

61_000_07--DBL-01-fr.pdf

Datenblatt

61_000_07--DBL-01-fr.pdf

Item information	Value
Manufacturer no.:	115 003 40
Shipping weight:	1,10 kg
Item weight:	1,10 kg
Dimensions ( Length × Width × Height ):	22,80 × 19,40 × 8,80 cm
LaNr.:	61 000 07
