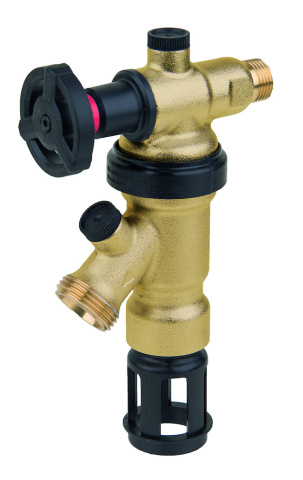

Resideo system separator BA295D lockable, lead-free, R 1/2 NEW

Item condition: New and in original packaging

EAN: 5059087023940
Heiz24 article number: PSBA295D-1/2LFAS
TARIC: 84813099
Country of origin: DE
Category: Installation

€ 212,91

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): ca. 3 weeks (DE - foreign countries differ)

Description
Reviews

Resideo BA295D system separator
BA295D series system separators are suitable for protecting drinking water systems against backpressure, backflow and backsiphonage.
They are used to protect taps. The system separator protects the drinking water network against liquids up to and including liquid category 4 in accordance with DIN EN 1717. DVGW approval.

Features:
- Quick and easy installation or retrofitting
- Can be installed directly in the pipework thanks to integrated shut-off device
- Compact design
- Optimum protection of the drinking water supply system
- Integrated dirt trap on the inlet side
- No dead space: No stagnation during intended operation
- Low pressure loss and high flow rate
- Triple safety - two backflow preventers and a drain valve divide the system separator into three pressure zones
- Rotatable housing - connection always in the correct position
- Optimised position of the outlet prevents bending of the connected hose
- Quick maintenance as the valve cartridge is fully replaceable. Inlet-side non-return valve and drain valve are combined in a single cartridge
- Low maintenance, as the dirt strainer and valve insert can be completely replaced without draining the system
- Complies with KTW regulations for drinking water
- 5-year guarantee
Medium: Drinking water
Nominal size: 1/2 inch
Protection class: BA
Housing material: Brass, lead-free
Fluid category (DIN EN 1717): 4
Max. Medium temperature: 65 degrees C
Kvs value: 2.8
Nominal pressure: PN 10
Make: Resideo
Type: Braukmann

PDF

rdup14632.pdf

rdup14632.pdf

Item information	Value
Shipping weight:	1,20 kg
Item weight:	1,20 kg
Dimensions ( Length × Width × Height ):	0,20 × 0,18 × 0,07 cm
