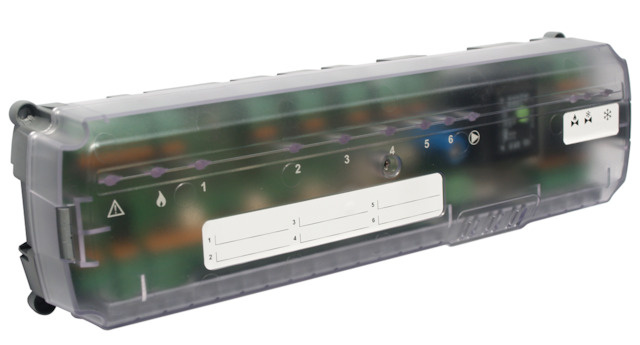

Resideo 6-zone FBH controller HCE20G1011

"Fig. similar. , errors in texts and images excepted."

Resideo 6-zone FBH controller HCE20G1011

Item condition: General overhauled and functionally tested by Heiz24 technical staff

Manufacturers: Resideo Pittway Sarl
EAN: 8714724990494
Heiz24 article number: ZPSHCE20G1011
TARIC: 39269097
Country of origin: DE
Category: Heating

from

€ 279,48

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Item sold out and no longer available for order

Configure

Would you like a free functional warranty extension by sending us your defective item?

Please select only one component.

Yes, I would like a 24 month functional warranty by returning my old defective article € 0,00: 24 months Heiz24 function warranty desired? You send us your old defective article back to us and receive a Heiz24 function warranty for 24 months for the respective product purchased from us. Simply print out the return documents, fill them out (don't forget the error description) and enclose them with the return shipment. As soon as we have received your defective item and the revocation period for the item purchased from us has expired, the 24 months Heiz24 functional guarantee will be confirmed to you by e-mail.

Quantity: 1

No, I'm not sending in my defective item € 0,00: No functional warranty extension requested

No, I do not want a free functional warranty extension. I will not send my old, defective item back to Heiz24.

Quantity: 1

Your configuration

product/group		price
incl. 19% VAT , Free shipping to DE. shipping costs

Resideo 6-zone FBH controller
The HCE20 is a wired
underfloor heating controller for heating and
cooling. It can control up to six
different temperature zones/rooms
. The temperature of the
individual zones/rooms is controlled by the
OpenTherm(R) room thermostats T4M or
T87M. With the T4M as the thermostat for
zone 1, it is also possible to set the other
zones to an energy-saving
temperature (ECO function).
If, for example, the programme of the
T4M switches to night mode,
the
temperature is also lowered in the other zones. The
T4M can also act as a thermostat for zone 1 for
switching from heating to cooling and
vice versa. The heat requirement of all
zones is converted into the
general heat requirement using a fuzzy
logic control algorithm.
A heat generator with on/off or
OpenTherm(R) communication can be controlled via
the various outlets
. An integrated pump relay
ensures that the pump starts up
when heat is requested from one of the zones
. If required, an
external and a flow
temperature sensor can be connected to control the
heat generator using the
weather-compensated flow control
. The cooling function
can easily be added via an
extension module.
This module has a
cooling demand output and an input
for switching between heating and
cooling to change the controller status
(external switch). In addition,
has a separate output for heating and
cooling, which controls the valves in
the supply lines. The
controller HCE20 can be mounted directly on the wall with 4 mounting holes
or on
a standard DIN rail
Height: 85 mm
Width: 350 mm
Depth: 52 mm
Make: Resideo
Type: Honeywell Home HCE20G1011

Item information	Value
Shipping weight:	0,50 kg
Item weight:	0,50 kg
Dimensions ( Length × Width × Height ):	37,00 × 7,50 × 16,50 cm
