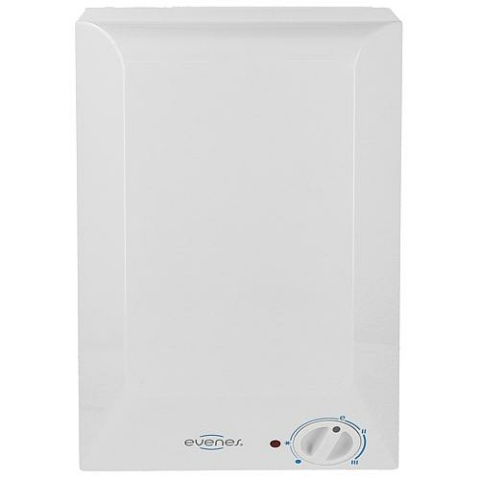

Evenes unpressurised hot water storage tank 5 ltr oversink TEG 5-O NEW

"Fig. similar. , errors in texts and images excepted."

Evenes unpressurised hot water storage tank 5 ltr oversink TEG 5-O NEW

Item condition: New and in original packaging

Manufacturers: Evenes
Heiz24 article number: WS9306427
TARIC: 85161080
Country of origin: DE
Category: Hot water tank

€ 73,80

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

66 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 66 Pcs. we can order for you

Pcs.

Model TEG	5 litres
	Top table
Technical data
Energy efficiency class	A*)
Power consumption year/day [KWh]	523/2,646
Connected load [W]	2000
Voltage [V]	~ 230
Rated current [A]	8,7
Water pipe connections	DN 15 (1/2")
Weight empty/with water [kg]	3,5/8,5
Average insulation layer thickness [mm]	31
Moisture protection class	IP 24
Heating time from 15 to 75°C [min]	10
Mixed water volume 40°C ¹⁾ [litres]	9,1
Heat loss [kWh/24h] ²⁾	0,32
Thermostat temperature setting	e/eco
Connection dimensions
A [mm]	390
B [mm]	264
C [mm]	-
D [mm]	256
E [mm]	213
Additional connection equipment (not included in the scope of delivery)
Mixer tap version	Above WB
Non-return valve	-

Model TEG	5 litres	10 litres	5 litres	10 litres
	Under table	Lower table	Upper table	Top table
Technical data
Energy efficiency class	A*)	A*)	A*)	A*)
Power consumption year/day [KWh]	527/2,49	525/2,477	525/2,475	523/2,464
Connected load [W]	2000	2000	2000	2000
Voltage [V]	~ 230	~ 230	~ 230	~ 230
Rated current [A]	8,7	8,7	8,7	8,7
Water pipe connections	DN 10 (3/8")	DN 10 (3/8")	DN 15 (1/2")	DN 15 (1/2")
Weight empty/with water [kg]	3,5/8,5	4/14	3,5/8,5	4/14
Average insulation layer thickness [mm]	31	35	31	35
Moisture protection level	IP 24	IP 24	IP 24	IP 24
Protection class	1	1	1	1
Heating time from 15 to 75°C [min]	10	20	10	20
Heat loss [kWh/24h] 2)	0,32	0,40	0,32	0,40
Thermostat temperature setting	25/41/55/75°C	25/41/55/75°C	25/41/55/75°C	25/41/55/75°C
Connection dimensions
A [mm]	390	471	390	471
B [mm]	-	-	264	398
C [mm]	138	122	-	-
D [mm]	256	310	256	310
E [mm]	213	265	213	265

*) The information corresponds to the requirements for EU Regulation No. 812/2013
2) Standby power consumption: Measured at an ambient temperature of 20°C and a water temperature of 65°C in the hot water tank (DIN 44532)

PDF

93_064_26--DBL-01-de.pdf

Datenblatt

93_064_26--DBL-01-de.pdf

93_064_27--DBL-02-de.pdf

Datenblatt

93_064_27--DBL-02-de.pdf

93_064_27--ErP-01-de.pdf

Erp-Info

93_064_27--ErP-01-de.pdf

93_064_26--DBL-01-en.pdf

Datenblatt

93_064_26--DBL-01-en.pdf

93_064_26--DBL-01-fr.pdf

Datenblatt

93_064_26--DBL-01-fr.pdf

Item information	Value
Type:	5 Liter Obertisch
Brand:	evenes
Content:	5 Liter
B [mm]:
c [mm]:	138
Connections:	G ½"
Shipping weight:	3,65 kg
Item weight:	3,65 kg
Dimensions ( Length × Width × Height ):	43,00 × 26,50 × 22,50 cm
LaNr.:	93 064 27
