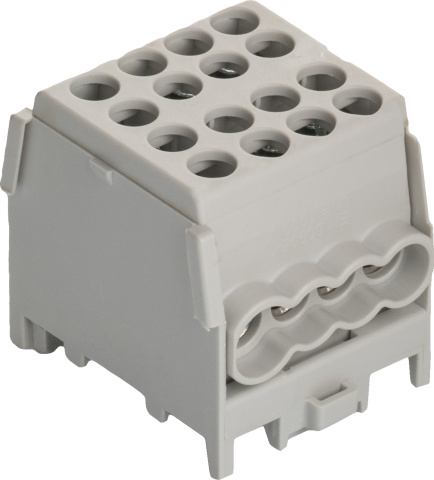

1 x grey / grey / gris, main cable branch terminals 1/6 M2, mini modular bayable, mounting on 35 mm mounting rail according to EN 60715, colour coding according to valid wire colours, Ui = 1000 V, VDE certified, tinned terminal block. Suitable for aluminium conductors. The small size means that less space is required in the distribution board. It is now possible to realise 35/25 mm2 outgoing circuits where conventionally only 25/16 mm2 were possible. The minimodular baying capability leads to unprecedented variability. The colour-coded terminal blocks can be combined as required and removed again with a single tool.PV suitability: Cable entries with insulating collars allow the terminal block to be used up to 1000 V rated voltage in accordance with VDE 0613 / EN 60998. The terminal blocks are finger-safe on all sides even without a conductor connected. For use with fine-stranded conductors, the terminal depth is adapted to the standard lengths of wire end ferrules (HLAK 35 - 25 mm, HLAK 25 - 16 mm) The new terminals are VDE-approved in accordance with VDE 0603-2 for meter stations and distribution boards.
