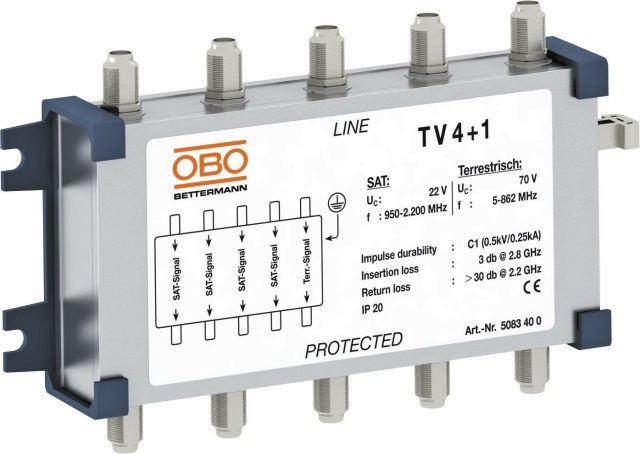

OBO Bettermann Vertr data line protection device for antennas TV 4+1 NEW

"Fig. similar. , errors in texts and images excepted."

OBO Bettermann Vertr data line protection device for antennas TV 4+1 NEW

Item condition: New and in original packaging

Manufacturers: OBO#
EAN: 4012195022978
Heiz24 article number: SP0633077
TARIC: 85363010
Country of origin: HU
Category: Überspannungsschutz

€ 115,21

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Coaxial data line protection for TV reception systems, protection of up to four SAT lines and one terrestrial line, e.g. DVB-T. Simple mounting by means of screws and holder. Connection with F-connector. Optimum transmission behaviour in 75 Ohm technology. Application: Protection of TV and SAT systems, multi-switches, receivers and DVB-T receivers. Includes holder and F-connector adapter cable. 5-year warranty

Item information	Value
Protection class (IP):	IP10
Mounting type:	Aufputz
Frequency:	0,5 MHz
Explosion-proof version:	nein
Highest continuous voltage AC:	130 V
Highest continuous voltage DC:	185 V
With remote signalling contact:	nein
Rated leakage current (8/20):	0,8 kA
Rated load current:	2 A
Protection level:	800 V
Lightning impulse current (10/350 µs):	2,5 kA
Connection 1:	F-Connector
Protection level wire/earth:	800 V
Arrester monitoring:	nein
Cut-off frequency:	2800 MHz
Protection level wire/wire:	800 V
Shipping weight:	0,45 kg
Item weight:	0,37 kg
Dimensions ( Length × Width × Height ):	19,50 × 13,80 × 8,30 cm
