Niedax joint WSGV 105 NEW

Item condition: New and in original packaging

Manufacturers: Niedax#
EAN: 4013339305100
Heiz24 article number: SP0411289
TARIC: 73089059
Country of origin: DE
Category: Kabelrinnen und Tragsysteme

€ 42,61

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

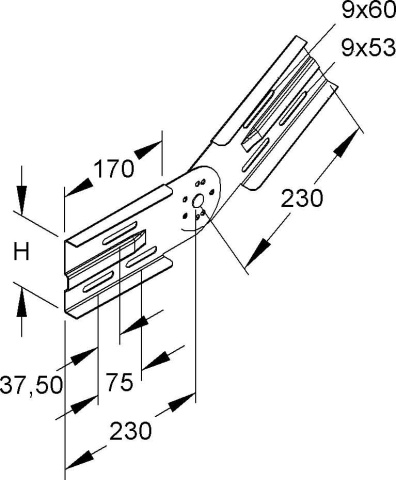

Hinge connector, vertical, for making vertical angle connections of continuous wide span cable trays/conductors, including hot-dip galvanised proportionate fixing accessories. Equipotential bonding is achieved by screwing to the wide span cable trays/conductor spars as well as the shaped spars. Joints must be supported in the immediate vicinity by an appropriate supporting structure. Suitable for: Wide span cable trays/conductors and their fittings with 105 mm edge height Requirement: 2 pieces per joint Dimensions (approx. dimensions) Height H (clear internal dimension): 106.5 mm Material: Steel, strip galvanised according to DIN EN 10346

Item information	Value
Version:	Längs- und Winkelverbinder
Surface protection:	bandverzinkt
Material grade:	sonstige
Material:	Stahl
Suitable for cable tray:	Ja
Suitable for cable ladder:	Ja
Suitable for mesh cable tray:	nein
Suitable for function maintenance:	nein
Length:	460 mm
Connection type:	Schraubverbinder
Stainless steel, pickled:	nein
Suitable for cable support system height:	105 mm
Hinge connector horizontal:	nein
Hinge connector vertical:	ja
Suitable for cable support system width:	200..600 mm
Shipping weight:	0,92 kg
Item weight:	0,92 kg
Dimensions ( Length × Width × Height ):	46,00 × 3,60 × 11,00 cm
