Niedax device installation box industry GDI 60/70 NEW

"Fig. similar. , errors in texts and images excepted."

Niedax device installation box industry GDI 60/70 NEW

Item condition: New and in original packaging

Manufacturers: Niedax#
EAN: 4013339460397
Heiz24 article number: SP0412295
TARIC: 39269097
Country of origin: DE
Category: Kabelkanal-Systeme und Zubehör

€ 45,83

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

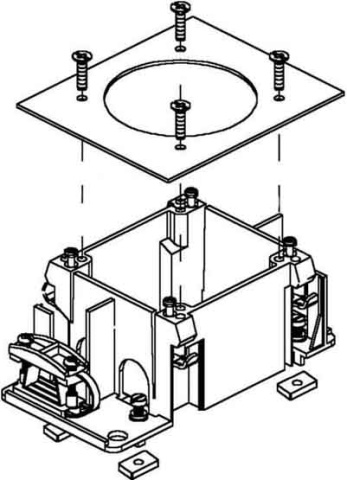

Industrial device installation box, front-locking, robust design, with large wiring space, with pre-moulded cable entry openings on the sides and strain relief, for hooking into the cover mounting contour of device trunking and for clamp mounting on TS 35 top-hat profiles whose connection dimensions comply with DIN EN 60715, with 60/70 mm mounting track, for accommodating industrial plugs and sockets up to 32A and for CEE sockets up to 32A, halogen-free, including accessory set. The cross-section of approx. 3167 mm² must be deducted from the usable cross-section of the appliance trunking. VDE ! Set consists of: 1 GDI 60/70 appliance installation box with strain relief 6 pan-head tapping screws with cross recess B 3.5x25 V to DIN EN ISO 7049 2 pan-head tapping screws with cross recess B 3.5x32 V to DIN EN ISO 7049 1 cover frame, no additional perforated panels required. for appliance trunking bases: GKU ... DKU ... PGU ... PLU ... GAU ... DAU ... ESDB 133/... ESED 133/... ESDD 133/... Dimensions (approx. dimensions) H x W x D external: 71 x 138 x 52 mm clear internal dimensions of box body H1 x B1 x D1: 66 x 77 x 50 mm usable internal dimensions of box body minus screw domes H2 x B2 x D2: 52 x 52 x 50 mm for lid opening: 78 mm Protection rating: IP30 Colour: light grey RAL: 7035 (similar) Material of box body and cover frame: PA (polyamide), flame-retardant, self-extinguishing Material screws and clamping pieces: Steel, galvanised

Item information	Value
Version:	geschlossen
Material:	Kunststoff
Number of units:	1
Fastening track:	sonstige
Device type:	CEE
With connection room:	ja
Mounting method of the box:	Front
Mounting type Installation device:	schrauben
Strain relief option:	ja
Shipping weight:	0,15 kg
Item weight:	0,11 kg
Dimensions ( Length × Width × Height ):	5,70 × 13,80 × 8,30 cm
