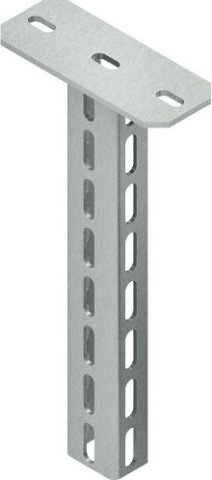

Niedax Hanging Handle HU 6040/600 NEW

Item condition: New and in original packaging

Manufacturers: Niedax#
EAN: 4013339891504
Heiz24 article number: SP5402263
TARIC: 73089059
Country of origin: DE
Category: Kabelrinnen und Tragsysteme

€ 33,52

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Suspension bracket, 3-sided continuous perforated U-profile with welded head plate, system HU 6040/..., for cantilevers for one/two and three-sided installation, to prevent deformation of the suspension bracket profile when installing cantilevers, the suspension bracket spacer profile HDS 60.40 F with hexagon head screw must be taken into account for structural reasons. If the bracket is attached to the suspended support profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the suspended support. For structural reasons and to enable the protective cap to be fitted without any problems, the bracket must be mounted at a distance of x=50 mm (lower edge of bracket to end of suspension rod) above the end of the suspension rod. Please observe the additional instructions for use in functional integrity! VDE ! for bracket: KTAL... KTAM... KTA... KTAS... for brackets: KTAS 100 - 400 (functional integrity/KFO) Dimensions (approx. dimensions) Top plate L x W x d: 200 x 80 x 6 mm Fixing holes: 13 x 28 mm Centre distance: 152 mm U-profile: 40 x 60 x 40 mm Material thickness t: 4 mm Three-sided profile perforation, single row: 13 x 40 mm Centre distance: 50 mm Total length L: 606 mm Material: Steel, hot-dip galvanised to DIN EN ISO 1461

Item information	Value
Version:	U-Profil
Surface protection:	feuerverzinkt
Material grade:	sonstige
Weight:	2,78674 kg
Material:	Stahl
Suitable for function maintenance:	Ja
Length:	606 mm
Stainless steel, pickled:	nein
Load capacity:	6 kN
Profile width:	40 mm
Profile height:	60 mm
Shipping weight:	2,79 kg
Item weight:	2,79 kg
Dimensions ( Length × Width × Height ):	60,60 × 20,00 × 8,00 cm
