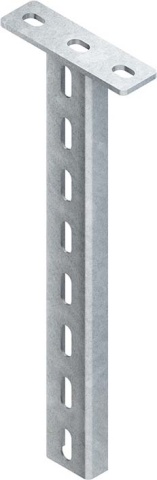

Niedax HUF 50/600 Hanging Handle NEW

Item condition: New and in original packaging

Manufacturers: Niedax#
EAN: 4013339169207
Heiz24 article number: SP0412306
TARIC: 73089059
Country of origin: DE
Category: Kabelrinnen und Tragsysteme

€ 15,48

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

Pcs.

Suspension bracket, U-profile with welded-on head plate, HUF 50/... system, for brackets for installation on one or both sides, brackets can be arranged horizontally at the same height on both sides using spacer UD 24. For structural reasons and to enable the protective cap to be fitted without any problems, the bracket must be mounted at a distance of x=50 mm (lower edge of bracket to end of suspension rod) above the end of the suspension rod. Please observe the additional instructions for use in functional integrity! VDE ! for bracket: KTUL... KTUM... for double brackets: KTDL... for central suspension: ZKU... = 400 mm length for cantilevers: KTUG... = 400 mm length (functional integrity) for cantilevers: KTU... = 400 mm length in conjunction with bracket adapter KAWG 12 (functional integrity) Dimensions (approx. dimensions) Top plate L x W x D: 140 x 40 x 5 mm Fixing holes: 13 x 20 mm Centre distance: 100 mm U-profile: 50 x 22 x 2 mm Profile perforation, single row: 12 x 30 mm Centre distance: 50 mm Total length L: 601 mm Material: Steel, hot-dip galvanised in accordance with DIN EN ISO 1461

Item information	Value
Version:	U-Profil
Surface protection:	feuerverzinkt
Material grade:	sonstige
Weight:	1,03961 kg
Material:	Stahl
Suitable for function maintenance:	Ja
Length:	601 mm
Stainless steel, pickled:	nein
Load capacity:	2 kN
Profile width:	22 mm
Profile height:	50 mm
Shipping weight:	1,10 kg
Item weight:	1,04 kg
Dimensions ( Length × Width × Height ):	60,50 × 14,00 × 4,00 cm
