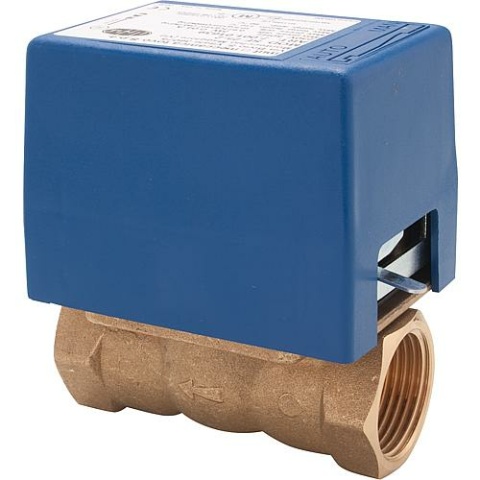

Mut 2-way zone valve SF with limit switch DN 15, KVS 6, 230 V NEW

"Fig. similar. , errors in texts and images excepted."

Mut 2-way zone valve SF with limit switch DN 15, KVS 6, 230 V NEW

Item condition: New and in original packaging

Manufacturers: Mut
Heiz24 article number: WS9040147
TARIC: 84818059
Country of origin: IT
Category: Motorised changeover valves

€ 79,75

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

8 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 8 Pcs. we can order for you

Pcs.

The zone valves are installed in closed circuits in heating systems. With manual override, lockable in centre position.

Technical data:
- Power consumption: 6 W
- Protection class: IP22
- Ambient temperature: max. 60°C
- Medium temperature: 5°C to 110°C
- Operating pressure: max. 10 bar
- Differential pressure: max. 0.9 bar
- Valve body, cover: brass
- Return spring: stainless steel
- Cable length: 1 m
- Max. differential pressure: 0.9 bar
How it works:
When the power supply is activated, the servomotor pushes the ball (against the spring force) from A to a centre position in about 10 seconds. When de-energised, the return spring pulls the ball back to A in about 4 seconds.

PDF

90_401_41--DBL-01-de.pdf

Datenblatt

90_401_41--DBL-01-de.pdf

Item information	Value
Brand:	mut
Size:	DN15 (½") IG
Voltage:	230 V, 50 Hz
Kvs value:	6
Shipping weight:	0,97 kg
Item weight:	0,97 kg
Dimensions ( Length × Width × Height ):	13,80 × 13,00 × 9,20 cm
LaNr.:	90 401 47
