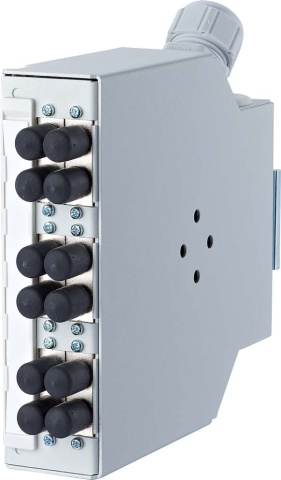

Metz Connect fibre optic splice distributor 6xSC/ST-D Adapter OpDAT REGplus 6SCSTD NEW

Item condition: New and in original packaging

Manufacturers: Metz Connect
EAN: 4250184117933
Heiz24 article number: SP4513092
TARIC: 85366990
Country of origin: DE
Category: RJ Steckverbinder

€ 128,82

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

11 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 11 Pcs. we can order for you

Pcs.

Splice distributor for mounting rail TH35, equipped with SC-D/ST-D (MM) couplings made of zinc die-cast, guide sleeve made of ceramic slotted for multimode applications, with fibre reservoir , freely inscribable labelling strip, various installation variants possible on the mounting rail, splice tray with crimp splice holder, front panel can be removed as a whole, Cable entry from above or below, straight or diagonal, with M20 cable gland (up to 2 possible), Entry of pre-assembled cables possible, One M20 cable entry with strain relief included in delivery, Fixing of enclosure cover via only one captive screw, Free coupling recesses fitted with special blind covers, Variants: equipped with 2, 3, 4 or 6 SC-D/ST-D couplings (SC-D on the inside, ST-D on the outside), Attention: When using pre-assembled cables with ST connectors, the unassembled version of the OpDAT REGplus must be used. The ST-D couplings then required are available as accessories. Before mounting the couplings in the housing, the pre-assembled ST plugs must be plugged onto the couplings for reasons of space.

Item information	Value
Colour:	grau
Height:	129 mm
Mounting type:	Hutschiene
RAL number:	9010
Wide:	34 mm
Depth:	129 mm
With housing:	ja
APC version:	nein
Suitable for number of couplings/adapters:	6
Suitable for number of module inserts:	6
With front panel:	ja
With pigtails:	nein
Connector type external:	SC-Duplex
Connector type inside:	SC-Duplex
With number of couplings/adapters:	6
Shipping weight:	0,74 kg
Item weight:	0,65 kg
Dimensions ( Length × Width × Height ):	14,50 × 18,20 × 4,00 cm
