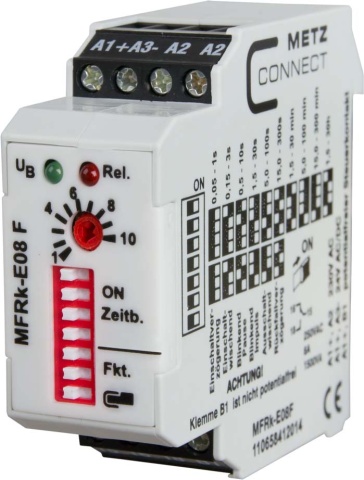

Metz Connect Time Relay 30h MFRk-E08 F 230AC24UC NEW

Item condition: New and in original packaging

Manufacturers: Metz Connect
EAN: 4250184122913
Heiz24 article number: SP0678275
TARIC: 85364900
Country of origin: DE
Category: Industrial Technology/Automation

€ 38,53

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

3 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 3 Pcs. we can order for you

Pcs.

Multifunction time relay with built-in coding switches for function setting. Time setting via a linear potentiometer on a relative scale.Connection with screw terminals, Ten adjustable time ranges from 0.05 s to 30 h, Seven functions adjustable, 1. switch-on delay, 2. switch-on wiping, 3. switch-off delay, 4. switch-off wiping, 5. flashing pause starting, 6. flashing pulse starting , 7. switch-off delay with blocking of control contact B1

Item information	Value
Height:	60 mm
Rated current:	6 A
Wide:	22,5 mm
Depth:	60 mm
Voltage type for actuation:	AC/DC
Design of the electrical connection:	Schraubanschluss
Rated control supply voltage Us at AC 50 Hz:	24..230 V
Rated control supply voltage Us at DC:	24 V
Time range:	180..108000 s
Number of outputs, undelayed, changeover contact:	1
Number of outputs, delayed, changeover contact:	1
Attachable to contactor:	nein
Outputs, switchable delayed/undelayed:	nein
Remote control possible:	nein
Function response delayed:	ja
Function wiping out:	ja
Function flashing starting with pulse, fixed time:	ja
Function flashing starting with pause, fixed time:	ja
Function wiping on:	ja
Pulse shaping function:	nein
Delayed release function:	ja
Function star/delta:	nein
Function clocking starting with pulse, variable:	nein
Function clocking starting with pause, variable:	nein
Suitable for front mounting:	nein
Suitable for top-hat rail mounting:	ja
With semiconductor output:	nein
With plug-in base:	nein
Shipping weight:	0,08 kg
Item weight:	0,07 kg
Dimensions ( Length × Width × Height ):	6,50 × 2,40 × 7,40 cm
