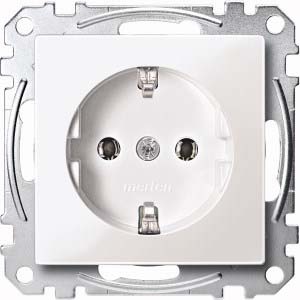

Merten SCHUKO socket outlet pws/gl with plug-in terminal MEG2301-0319 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4042811138462
Heiz24 article number: SP0851441
TARIC: 85366990
Country of origin: DE
Category: Schalter, Steckdosen, Perilex, Terko

€ 5,54

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

7259 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 7259 Pcs. we can order for you

Pcs.

Features-Frontal retrofitting of QuickFlex add-on modules without dismantling the socket. -Quick-thread screws for claw attachment. -Recessed claws with return spring. -High-gloss galvanised support ring insulated to the claw. With claw and screw fixing. With plug-in terminals. Accessories -Extension set for surge protection for System M socket outlets with earthing contact MEG2335-03xx/-04xx. -Extension set LED lighting for socket outlets with earthing contact System M MEG2334-03xx/-04xx. -Extension set control light for socket outlets with earthing contact System M MEG2333-03xx/-04xx Material thermoplastic brilliant. Colour polar white glossy. Cradle to Cradle CertifiedTM.

Item information	Value
Version:	SCHUKO
Surface protection:	unbehandelt
Colour:	Polarweiß
Material grade:	Thermoplast
Surge protection:	nein
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Cover:	Zentralplatte
Connection type:	Steckklemme
Material:	Polycarbonat
Surface finish:	glänzend
Mounting type:	Befestigung mit Kralle und Schraube
RAL number (similar):	9010
Rated voltage:	250 V
Number of units:	1
Insulated installation:	Ja
Rated current:	16 A
Impact resistance:	IK03
Lockable:	nein
Antibacterial treatment:	nein
Frequency:	50 Hz
With hinged lid:	nein
Number of phases:	1
Text field/inscription area:	nein
Imprint/Labelling:	ohne
Rated residual current:	0 mA
Unit width:	71 mm
Unit height:	71 mm
Unit depth:	40 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Min. depth of the device box:	40 mm
Number of active contacts (round):	2
With increased contact protection:	nein
Protective earth contact round:	nein
With signal lamp:	nein
Suitable for protection class (IP):	IP20
With on/off switch:	nein
Ejection mechanism:	nein
Residual current protection:	nein
For "difficult conditions" (according to VDE):	nein
Metallic paint:	nein
With loop-through function:	ja
With built-in USB power supply:	nein
With fine-wire fuse:	nein
With functional lighting:	nein
With orientation light:	nein
Protective contact:	ja
Special power supply:	ohne Sonderstromversorgung
Twisted central insert:	nein
Shipping weight:	0,07 kg
Item weight:	0,07 kg
Dimensions ( Length × Width × Height ):	7,10 × 7,10 × 4,00 cm
