"Fig. similar. , errors in texts and images excepted."

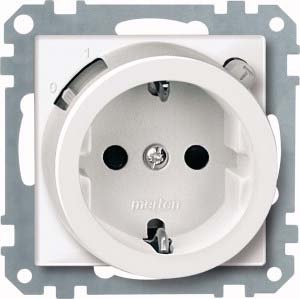

Merten RCD socket outlet insert pwgl Schuko BRS 233819 NEW

Item condition: New and in original packaging

Manufacturers: Merten##
EAN: 4042811032456
Heiz24 article number: SP0824149
TARIC: 85369010
Country of origin: DE
Category: Systemgebundene Elektronik (Wächter, Dimmer)

€ 142,83

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

25 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 25 Pcs. we can order for you

Pcs.

Integrated increased touch protection according to VDE 0620 part 1. Built according to VDE 0664 (EN 61008). To increase safety in existing installations according to VDE 0100 part 410. Output for connecting further consumers. For installation in a 60 mm flush-mounted box. Voltage AC 230 V. Fault current 30 mA. Max. Current 16 A. Short-circuit strength 3000 A. Protection class IP 20. Material thermoplastic brilliant. Colour polar white glossy.

Item information	Value
Version:	SCHUKO
Surface protection:	unbehandelt
Colour:	Polarweiß
Material grade:	Thermoplast
Surge protection:	nein
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Cover:	Einsatz mit Zentralplatte
Connection type:	Steckklemme
Material:	Polycarbonat
Surface finish:	glänzend
Mounting type:	Befestigung mit Kralle und Schraube
RAL number (similar):	9010
Rated voltage:	250 V
Number of units:	1
Insulated installation:	Ja
Rated current:	16 A
Impact resistance:	IK03
Lockable:	nein
Antibacterial treatment:	nein
Frequency:	50 Hz
With hinged lid:	nein
Number of phases:	1
Text field/inscription area:	nein
Imprint/Labelling:	ohne
Rated residual current:	30 mA
Unit width:	71 mm
Unit height:	71 mm
Unit depth:	68 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Min. depth of the device box:	40 mm
Number of active contacts (round):	1
With increased contact protection:	ja
Protective earth contact round:	nein
With signal lamp:	nein
Suitable for protection class (IP):	IP20
With on/off switch:	nein
Ejection mechanism:	nein
Residual current protection:	ja
For "difficult conditions" (according to VDE):	nein
Metallic paint:	nein
With loop-through function:	ja
With built-in USB power supply:	nein
With fine-wire fuse:	nein
With functional lighting:	nein
With orientation light:	nein
Protective contact:	ja
Special power supply:	ohne Sonderstromversorgung
Twisted central insert:	nein
Shipping weight:	0,17 kg
Item weight:	0,14 kg
Dimensions ( Length × Width × Height ):	7,10 × 7,10 × 6,80 cm
