"Fig. similar. , errors in texts and images excepted."

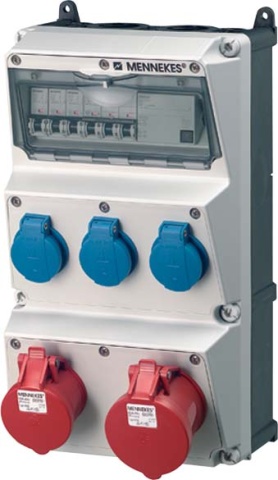

Mennekes socket outlet combination AMAXX 930008 NEW

Item condition: New and in original packaging

Manufacturers: Mennekes#
EAN: 4015394223368
Heiz24 article number: SP1033065
TARIC: 85371098
Country of origin: DE
Category: Rubber, industrial and CEE plugs and sockets

€ 703,46

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

17 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 17 Pcs. we can order for you

Pcs.

Combine instead of installing individually. Many individual sockets with separate supply lines are expensive, impractical and increase the fire load. With AMAXX, you combine cleverly and save valuable installation time. Why? ? Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing, whose external fastening enables one-man installation. The hinged, side-opening housing cover as well as the pull-out top-hat rails and the large connection space facilitate the connection work. AMAXX is pre-wired ready for connection and tested for electrical safety and quality in accordance with IEC 61439. Further advantages are the generally slanted plug-in direction for easier handling when plugging and unplugging, the transparent actuation window for rail-mounted devices (if present) with latching closure, several different, pre-assembled cable entry options and the captive cover screws for quick opening and closing of the enclosure. High impact resistance and dimensional stability at cold and heat as well as the reduction of risks in case of fire due to self-extinguishing material characterise our AMAXX product range. Wherever you want to score not only technically but also visually. You would also like to combine data technology and not install it individually, you need a solution for a narrow niche, you would like to have a mobile unit always at hand or even install a detachable solution? Our AMAXX product family offers many possible solutions. Talk to your consultant.

Item information	Value
Colour:	grau
Protection class (IP):	IP44
Height:	390 mm
Enclosure material:	Kunststoff
Number of SCHUKO sockets:	3
Hedging:	LS-Schalter
Wide:	225 mm
Depth:	221 mm
Military version:	nein
Contact material:	CuSn
Surface treatment contacts:	unbehandelt
Residual current type:	A
CEE socket - 125A:	ohne
CEE socket - 16 A:	1x16A5p400V
CEE socket - 32 A:	1x32A5p400V
CEE socket - 63 A:	ohne
Feed/connection possibility:	2 Leitungen (Ringleitung/zum Durchschleifen)
Ground fault circuit interrupter:	FI mit IFN 0,03 A (Standard)
Handling:	Wandmontage
Shipping weight:	5,61 kg
Item weight:	5,61 kg
Dimensions ( Length × Width × Height ):	39,00 × 22,50 × 22,10 cm
