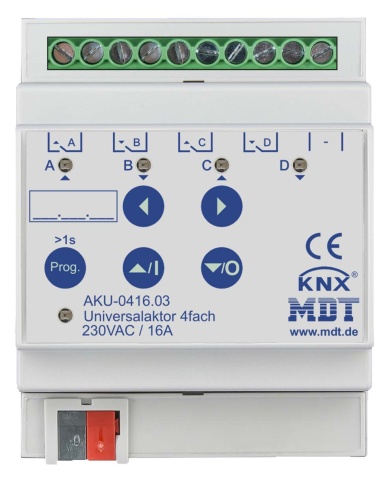

MDT technologies Universal actuator 4-fold 4TE REG,16A,230VAC,100•F AKU-0416.03 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916130411
Heiz24 article number: SP6522604
TARIC: 85371091
Country of origin: DE
Category: Electric

€ 175,07

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

4 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 4 we can order for you

• Universal actuator 4gang, 4TE, REG, 16A, 230VAC, 100MikroF, 15EVG. Compact design with bistable relay. Current max. 16A with ohmic load, 100MikroF/15EVG. With sun position calculation / shading. Can be used as a switching actuator (max. 4fold) or blind actuator (max. 2fold). Any combination of switching and blind actuator. Heating control with PWM 0100%. Pushbutton for manual operation and LED display per channel. Practical ventilation function (window open/tilted). Automatic shading/slat tracking with sun position calculation. Time functions (switchon/switchoff delay, staircase lighting function). Feedback function (active/passive) for all channels. Logical links, 8 scenes per channel. Central functions and blocking objects for forced operation. Adjustable blind/shutter operating mode. Run, pause and step time freely adjustable. Adjustable behaviour on bus voltage failure/recovery. 4mm / 2x2.5mm connection terminals. All L connections separated

Item information	Value
Shipping weight:	0,26 kg
Item weight:	0,23 kg
Dimensions ( Length × Width × Height ):	8,40 × 9,50 × 7,00 cm
