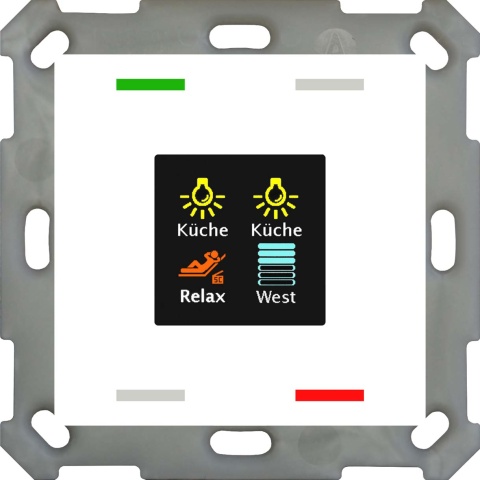

MDT technologies Push-button Smart 55 4-fold colour display, rws/glä BE-TAS5504.01 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916111274
Heiz24 article number: SP0882292
TARIC: 85176200
Country of origin: DE
Category: Installations-Bus-Systeme

€ 120,67

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

19 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 19 Pcs. we can order for you

Pcs.

Push-button Smart 55 4-fold with colour display, pure white glossy. Version with 4 push-button surfaces. Integrated bus coupling unit. Suitable for 55mm switch ranges e.g.: GIRA Standard 55, E2,E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW, MERTEN 1M, M-Smart, M-Plan, M-Pure. Active colour display for function and status indication. Background colour of the display adjustable (white or black). Display brightness adjustable via brightness and day/night object. Display of indoor/outdoor temperature and time. New multiple tap function, sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra long button press. One- and two-button operation for switching, dimming, blinds, values. Symbols and free texts can be set for each button/function. Short/long push-button action with 2 objects. Installation in switch box with supplied support ring. No additional power supply required. Recommended mounting height 1.05 - 1.20m. Integrated bus coupling unit.

Item information	Value
Surface protection:	sonstige
Colour:	weiß
Protection class (IP):	IP20
Material grade:	Thermoplast
Transparent:	nein
Mounting type:	Unterputz
With display:	Ja
Material:	Kunststoff
Surface finish:	glänzend
RAL number (similar):	9010
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	nein
With labelling field:	nein
With LED display:	ja
Min. depth of the device box:	35 mm
Number of keys:	4
Number of actuation points:	4
With theft/demontage protection:	nein
With infrared sensor:	nein
With room thermostat:	nein
Shipping weight:	0,06 kg
Item weight:	0,04 kg
Dimensions ( Length × Width × Height ):	4,10 × 10,40 × 7,60 cm
