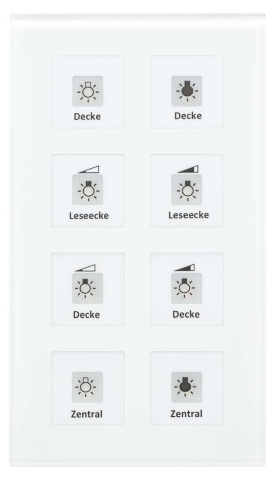

MDT technologies Glass Push Button Plus 8-fold white BE-GT08W.01 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916110222
Heiz24 article number: SP0882203
TARIC: 85176200
Country of origin: DE
Category: Installations-Bus-Systeme

€ 157,27

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Glass push-button Plus 8-fold, white. Version with 8 sensor surfaces and LED for operation/status display. All-round orientation light. Integrated bus coupling unit. The buttons are freely adjustable as button pair or individual buttons. Normally open or normally closed operation, length of button press adjustable. Transmission of values, priority control and switching commands adjustable. Push-button operation with short/long push-button action and 2 objects. White/red LED per sensor surface. LED brightness adjustable in 5 steps via day/night object. One- and two-button operation for dimmer/blind functions. Labelling foil for insertion under the glass surface. Installation in 2 switch boxes, supplied with labelling foil. Dimensions (W x H): 92mm x 163mm. Integrated bus coupling unit.

Item information	Value
Surface protection:	sonstige
Colour:	weiß
Protection class (IP):	IP20
Material grade:	sonstige
Transparent:	nein
Mounting type:	Unterputz
With display:	nein
Material:	Glas
Surface finish:	glänzend
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	nein
With labelling field:	ja
With LED display:	ja
Min. depth of the device box:	35 mm
Number of keys:	8
Number of actuation points:	8
With theft/demontage protection:	nein
With infrared sensor:	nein
With room thermostat:	nein
Shipping weight:	0,32 kg
Item weight:	0,29 kg
Dimensions ( Length × Width × Height ):	4,00 × 17,50 × 9,80 cm
