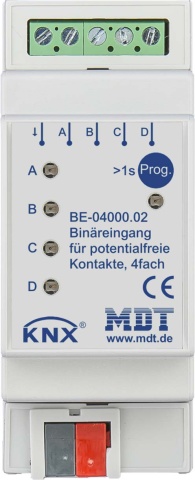

MDT technologies Binary input 4-fold 2TE REG, potential-free BE-04000.02 NEW

Item condition: New and in original packaging

Manufacturers: MDT_technologies#
EAN: 4251916110024
Heiz24 article number: SP6522623
TARIC: 85176200
Country of origin: DE
Category: Installations-Bus-Systeme

€ 144,80

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

21 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 21 Pcs. we can order for you

Pcs.

Binary input 4-fold, 2TE, REG, potential-free version. Version for connection of potential-free contacts. LED display for each channel, cable length max. 100m. For connecting push-buttons, switches, window contacts. New multi-tap function, sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra long keystroke. 4 integrated logic modules, e.g. for evaluating the inputs (e.g. window closed or send second object). Normally open or normally closed operation, send contact status. Dimmer and shutter function for one-button and two-button operation. Send values, priority control. Scenes, disable objects for each channel. Push-button operation with short/long push-button action and 2 objects. Pulse and switch counter with extensive counter functions (suitable for 30ms S0 pulses, e.g. Eltako DSZ). Cyclic transmission, transmission after reset. Internally generated 12V contact voltage.

Item information	Value
Protection class (IP):	IP20
Mounting type:	REG
Width in units of division:	2
Number of inputs:	4
Other bus systems:	ohne
Radio bus system:	nein
Bus system KNX:	ja
Bus system KNX radio:	nein
LON bus system:	nein
Powernet bus system:	nein
With bus coupling:	ja
Radio bidirectional:	nein
With LED display:	ja
Input voltage type:	gepulst
Bus module removable:	nein
Control LED:	nein
Shipping weight:	0,10 kg
Item weight:	0,08 kg
Dimensions ( Length × Width × Height ):	4,10 × 10,10 × 6,90 cm
