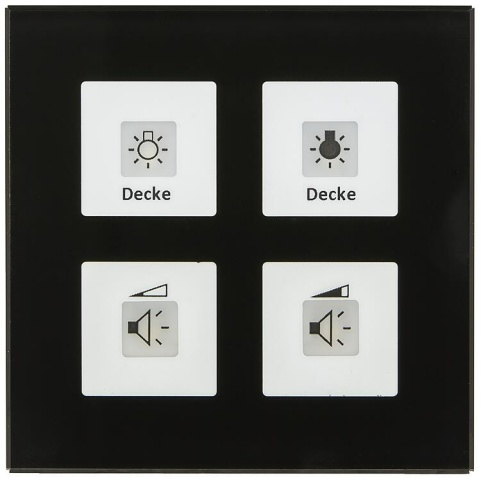

MDT KNX RF+ Radio glass push-button Plus 4-fold with actuator, black NEW

Item condition: New and in original packaging

Manufacturers: MDT#
EAN: 4251916148553
Heiz24 article number: WS6213102
TARIC: 85365080
Country of origin: DE
Category: NEW

€ 149,75

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

- Version with 4 sensor surfaces and LED for operating/status display
- Circulating orientation light
- Current max. 10 A with ohmic load, 10 A with 14 µF/2EVG
- For operation within the EU, 868 MHz
- KNX RF+ protocol in system mode
- Commissioning from ETS 5
- With temperature sensor for room temperature measurement
- The push-buttons are freely adjustable as a pair of buttons or individual buttons
- Normally open or normally closed operation, Length of button press adjustable
- Sending of values, forced operation and switching commands adjustable
- Button operation with short/long button press and 2 objects
- Single and double button operation for dimmer/blind functions
- Operation as a 2-fold switching actuator or 1-fold blind actuator
- 4 integrated logic modules, cleaning function
- Additional switching channel (e.g. for the dimmer/blind function) - Additional switching channel (e.g. for the dimmer/blind function).B. Panic function)
- Connection via MDT KNX RF+ wireless line coupler
- Circumferential orientation light with day/night object
- Labelling foil for insertion under the glass surface
- As a replacement for conventional series switches
- For modernisation without laying bus cables
- Power supply 230 VAC
- Dimensions:
- 4-gang 92 x 92 mm
- 8-gang 92 x 163 mm
- Installation with supplied support ring, supplied with labelling foil
- Integrated bus coupling unit

PDF

62_131_02--DBL-02-de.pdf

Datenblatt

62_131_02--DBL-02-de.pdf

Item information	Value
Type:	RF-GTT4S.01
Brand:	MDT
EAN:	4251916148553
Version:	4-fach
Colour:	schwarz
Shipping weight:	0,34 kg
Item weight:	0,34 kg
Dimensions ( Length × Width × Height ):	32,40 × 22,60 × 8,00 cm
LaNr.:	62 131 02
