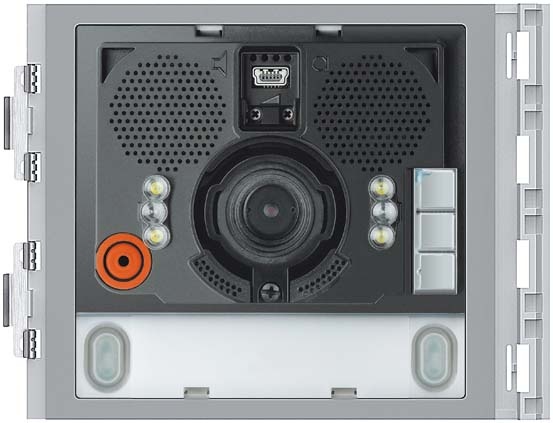

Legrand (SEKO) Door loudspeaker module video standard,2 call buttons 351200 NEW

Item condition: New and in original packaging

Manufacturers: Legrand
EAN: 8005543441565
Heiz24 article number: SP7106548
TARIC: 85176910
Country of origin: IT
Category: Low current, intercom, alarm

€ 646,21

incl. 19% VAT , Free shipping to DE.

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

1 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 1 Pcs. we can order for you

Pcs.

Colour camera with integrated loudspeaker module with 2 call buttons for installation of audio/video systems in 2-wire technology. Colour camera with 1/3 inch sensor (image area 77 degrees horizontal/58 degrees vertical) including LEDs for illumination of the recording area and anti-fog heating (heating resistor). Two-axis alignment of the camera (horizontal and vertical) in the range +/- 10 degrees. With adjustment of the volume of the loudspeaker and microphone. For managing up to 98 call buttons via the codelock/keypad module or with 2-row call button modules. Up to 49 call buttons are possible with 1-row call button modules. The door opener (max. 30 Ohm internal resistance) is connected directly to the terminals S+ and S- (18 V 4 A surge current - 250 mA holding current). An external door opener button (e.g. post office lock) can be connected via terminals PL. An additional power supply unit can be connected to terminals 1 and 2 (e.g. for large systems with several door stations). The device is equipped with several status LEDs which indicate the following operating states: Door open, communication active, call made and system busy. Integrated brightness sensor for automatically switching on the backlight in darkness. To be completed with the corresponding front panel. The unit is configured either with configurators or via PC and TiSferaDesign software. Note: When using the left call button on the loudspeaker module or the 2-row call button modules, the jumper (J1) must be pulled.

Item information	Value
Colour:	sonstige
Protection class (IP):	IP54
Mounting type:	Aufputz
Installation technology:	Bus-System
Impact resistance:	IK07
Front material:	sonstige
Installation depth:	20 mm
Front panel width:	115 mm
Front panel height:	91 mm
Number of call/bell buttons:	2
Material of the bell buttons:	Kunststoff
Shipping weight:	0,24 kg
Item weight:	0,24 kg
Dimensions ( Length × Width × Height ):	3,80 × 10,40 × 12,70 cm
