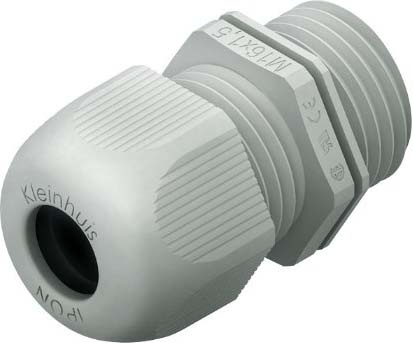

Kleinhuis cable gland lgr,D=38-44mm 1234M6301 NEW

"Fig. similar. , errors in texts and images excepted."

Kleinhuis cable gland lgr,D=38-44mm 1234M6301 NEW

Item condition: New and in original packaging

Manufacturers: HKL#
EAN: 4011126344592
Heiz24 article number: SP0482059
TARIC: 39269097
Country of origin: DE
Category: Screws Accessories Cables Plugs

€ 13,76

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

8 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 8 Pcs. we can order for you

Pcs.

Please note the permissible order quantity of 1 Pcs..

IPON cable gland to DIN EN 62444, with metric connection thread to DIN EN 60423, with integrated strain relief and an additional connection thread sealing ring. VDE ! Nominal size: M 63 for cable Ø: 38 - 44 mm Connection thread length: 14 mm Width across flats 1: 65 mm Width across flats 2: 68 mm Glow wire test to VDE 0471/DIN IEC 695 Part 2-1: 650°C Protection class: IP68, 3 bar Flame retardancy: UL 94 V-O Operating temperature range: -20° to 100°C Material gland body: polyamide Material sealing ring: CR/NBR Material additional connection thread sealing ring: NBR Colour: light grey RAL: 7035 (similar)

Item information	Value
Version:	gerade
Surface protection:	unbehandelt
Colour:	grau
Protection class (IP):	IP68
Material grade:	Polyamid (PA)
Halogen-free:	Ja
Material:	Kunststoff
RAL number:	7035
Thread type:	metrisch
Impact resistant:	Ja
Type of seal:	Dichtring
Shielded:	nein
For Ex-Zone Gas:	ohne
For Ex-Zone dust:	ohne
Width across flats:	68 mm
Bending protection:	nein
Operating temperature:	-20..100 °C
Explosion-proof version:	nein
Flat cable gland:	nein
For armoured cables:	nein
Suitable for cable diameter:	38..44 mm
Thread length:	14 mm
Nominal thread size metric/PG:	63
Thread pitch:	1,5 mm
Glass fibre reinforced:	nein
Engaging in opening:	nein
Multiple sealing insert:	nein
With locknut:	nein
With strain relief:	ja
Hexagonal corner dimension:	73 mm
Separable screw connection:	nein
EMC version:	nein
Shipping weight:	0,09 kg
Item weight:	0,09 kg
Dimensions ( Length × Width × Height ):	6,40 × 7,30 × 7,30 cm
