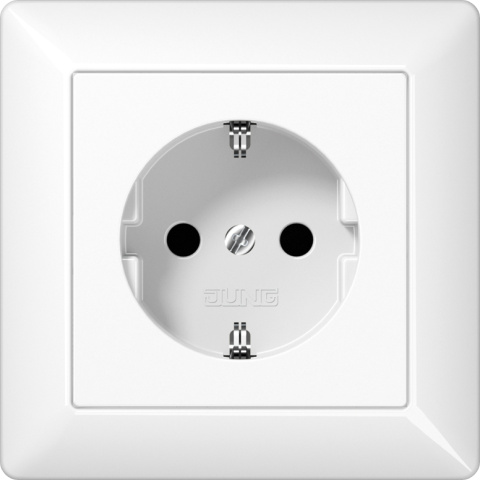

Jung SCHUKO socket outlet alpine white AS 1520 KI WW NEW

"Fig. similar. , errors in texts and images excepted."

Jung SCHUKO socket outlet alpine white AS 1520 KI WW NEW

Item condition: New and in original packaging

Manufacturers: Jung#
EAN: 4011377057425
Heiz24 article number: SP0863333
TARIC: 85366990
Country of origin: DE
Category: Schalter, Steckdosen, Perilex, Terko

€ 9,17

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

137 Pcs. in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 137 Pcs. we can order for you

Pcs.

with integrated increased touch protection (Safety Plus) with integrated frame with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2 Connection terminals according to DIN VDE 0620 Support ring, claws and claw screws are integrated into the protective measure via an earthing bar. Material: thermosetting plastic

PDF

Montageanleitung

Montageanleitung

Item information	Value
Version:	SCHUKO
Surface protection:	sonstige
Colour:	Alpinweiß
Material grade:	Duroplast
Surge protection:	nein
Transparent:	nein
Mounting type:	Unterputz
Halogen-free:	Ja
Cover:	Vollplatte
Connection type:	Steckklemme
Material:	Kunststoff
Surface finish:	glänzend
Mounting type:	Krallen-/Schraubbefestigung
RAL number (similar):	9016
Rated voltage:	250 V
Number of units:	1
Insulated installation:	nein
Rated current:	16 A
Lockable:	nein
Antibacterial treatment:	nein
With hinged lid:	nein
Number of phases:	1
Text field/inscription area:	nein
Imprint/Labelling:	ohne
Unit width:	80,5 mm
Unit height:	80,5 mm
IFTTT support available:	nein
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Number of active contacts (round):	2
With increased contact protection:	ja
Protective earth contact round:	nein
With signal lamp:	nein
Suitable for protection class (IP):	IP20
With on/off switch:	nein
Ejection mechanism:	nein
Residual current protection:	nein
For "difficult conditions" (according to VDE):	nein
Metallic paint:	nein
With loop-through function:	nein
With built-in USB power supply:	nein
With fine-wire fuse:	nein
With functional lighting:	nein
With orientation light:	nein
Protective contact:	ja
Special power supply:	ohne Sonderstromversorgung
Twisted central insert:	nein
Shipping weight:	0,11 kg
Item weight:	0,10 kg
Dimensions ( Length × Width × Height ):	8,10 × 8,10 × 3,90 cm
