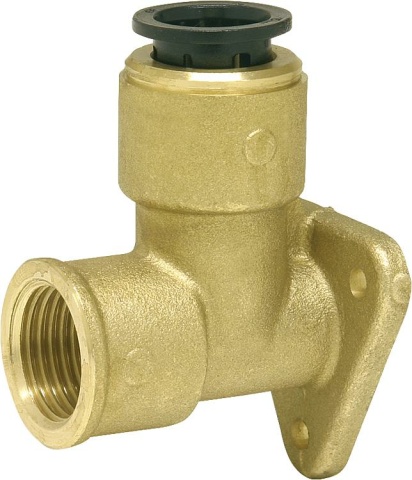

John Guest wall bracket brass 15 mm x DN15(1/2""), 90°, (I/IG) PM15WB NEW

Item condition: New and in original packaging

Manufacturers: John_Guest#
Heiz24 article number: WS9021544
TARIC: 74122000
Country of origin: GB
Category: NEW

€ 26,50

incl. 19% VAT , plus

From	Unit price
10	€ 22,36*

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

34 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 34 we can order for you

Plastic plug-in connector
The new plastic plug-in system reduces installation time by around 50% thanks to its quick and easy handling. There is no need to use heavy and expensive tools or to additionally seal the connection. As this push-fit system can be used with copper, aluminium and plastic pipes, it is ideal for modifying, extending, modernising and renewing compressed air supply networks. Thanks to the patented holding technology, the plug-in connection can be made and released several times without the need for additional tools. The connectors in ø 15, 22
and 28 mm have a long service life, are corrosion-free and have good flow properties. This connector system can also be used in various applications such as rough
and fine vacuum as well as for water pipes.
(*Not suitable for drinking water, as only the connectors are KTW and W270. A drinking water installation is possible with another pipe suitable for drinking water and the plug connectors).
Technical information: Areas of application:
- compressed air
- vacuum (coarse/fine)
- cold water supply*
- hot water supply*
- cooling water circuits

Pipe designs: Plastic pipes:
PE, PEX, PA and PB pipe materials,
which comply with the specified tolerances.

Pipe tolerances: for pipe ø 15, 22 and 28 mm:
+0.05 / -0.10 mm

max. Tightening torques: Plastic threads:
DN 10 - DN 15 (3/8" - 1/2") 3.0 Nm
DN 20 (3/4") 4.0 Nm
max. Working temperatures and pressures:
Air -20°C 10 bar
+23°C 15 bar with / 10 bar without retaining ring 15 - 22 mm ø
+23°C 15 bar - 28 mm ø
+70°C 7 bar
Water +1°C 10 bar
+23°C 10 bar
+70°C 7 bar

Metal pipes (soft):
Brass, copper and aluminium pipes,
which comply with the specified tolerances.

Manufactured according to: EN/ISO 9001
PA plastic pipe according to DIN 73378, DIN 74324 (not 22 - 28 mm)

Metal thread:
DN 15 (1/2") 4.0 Nm
DN 20 (3/4" - 1") 5.0 Nm

PDF

90_215_13--DBL-01-de.pdf

Datenblatt

90_215_13--DBL-01-de.pdf

Item information	Value
Version:	1-teilig
Size:	15 mm x DN 15 (1/2")
Form:	Winkel
Conical:	Ja
Max. Working pressure [bar]:	10
Max. Medium temperature (continuous operation) [°C]:	65
System-bound:	Ja
Connection 1:	Steckmuffe
Connection 2:	Innengewinde
Number of connections:	2
:	Kunststoff
:	-20
:	Ja
:	Ja
:	Messing
:	Ja
:	Ja
:
:
:	Nitrilkautschuk NBR
:	Ja
:	15
:	Ja
:	90
:	1/2 Zoll (15)
Shipping weight:	0,24 kg
Item weight:	0,24 kg
Dimensions ( Length × Width × Height ):	6,80 × 4,50 × 4,80 cm
