"Fig. similar. , errors in texts and images excepted."

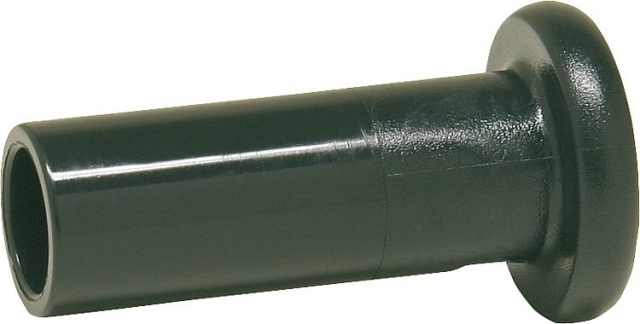

John Guest sealing plug 15 mm PM0815E NEW

Item condition: New and in original packaging

Manufacturers: John_Guest#
Heiz24 article number: WS9021558
TARIC: 39174000
Country of origin: GB
Category: NEW

€ 1,90

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

115 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 115 we can order for you

Description
Reviews

Installation example and application:
Technical information: Areas of application:
- compressed air
- vacuum (coarse/fine)
- cold water supply*
- hot water supply*
- cooling water circuits

Pipe versions: Plastic pipes:
PE, PEX, PA and PB Pipe materials,
which comply with the specified tolerances.

Pipe tolerances: for pipe ø 15, 22 and 28 mm:
+0.05 / -0.10 mm

Max. tightening torques: Plastic threads:
DN 10 - DN 15 (3/8" - 1/2") 3.0 Nm
DN 20 (3/4") 4.0 Nm
Max. tightening torques: Plastic threads: DN 10 - DN 15 (3/8" - 1/2") 3.0 Nm DN 20 (3/4") 4.0 Nm Working temperatures and pressures:
Air -20°C 10 bar
+23°C 15 bar with / 10 bar without circlip 15 - 22 mm ø
+23°C 15 bar - 28 mm ø
+70°C 7 bar
Water +1°C 10 bar
+23°C 10 bar
+70°C 7 bar

Metal pipes (soft):
Brass, copper and aluminium pipes,
which comply with the specified tolerances.

Manufactured according to: EN/ISO 9001
PA plastic pipe according to DIN 73378, DIN 74324 (not 22 - 28 mm)

Metal thread:
DN 15 (1/2") 4.0 Nm
DN 20 (3/4" - 1") 5.0 Nm

PDF

82_017_45--DBL-01-de.pdf

Datenblatt

82_017_45--DBL-01-de.pdf

Item information	Value
Size [mm]:	15
System-bound:
Connection 1:	Steckmuffe
Number of connections:	1
:	Kunststoff
:
:
:
:
:	15
:	Polyoxymethylen (POM)
Shipping weight:	0,01 kg
Item weight:	0,01 kg
Dimensions ( Length × Width × Height ):	4,50 × 2,50 × 2,50 cm
