"Fig. similar. , errors in texts and images excepted."

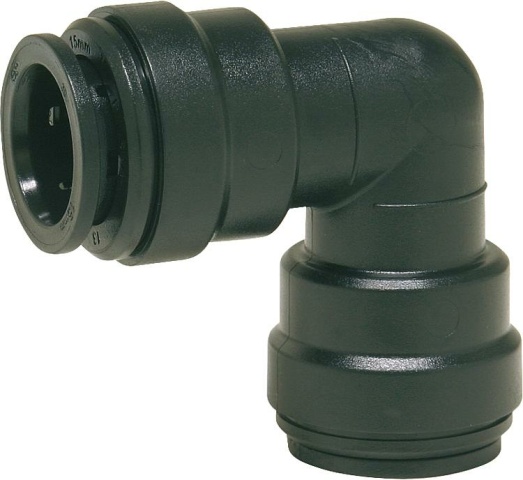

John Guest angle connector 22 mm, 90°, (I/I) PM0322E NEW

Item condition: New and in original packaging

Manufacturers: John_Guest#
Heiz24 article number: WS9021517
TARIC: 39174000
Country of origin: GB
Category: NEW

€ 8,85

incl. 19% VAT , plus

From	Unit price
10	€ 7,49*

Choose tax zone / country of delivery

Available for immediate order
Estimated delivery time (may vary): 3 - 5 Workdays (DE - foreign countries differ)

44 in the supplier warehouse

Estimated delivery time (may vary): 3 - 5 workdays (DE - foreign countries differ)

more than 44 we can order for you

- Ideal for compressed air and liquids
- Quick and easy installation
- For the following pipe materials: plastic, copper and aluminium pipes (metallic pipes must be calibrated and burr-free)
- Temperature range: -20°C to + 65°C
- Operating pressure: 10 bar
- Quick release of connectors
- Very good flow properties
Technical information: Areas of application:
- Compressed air
- Vacuum (coarse/fine)
- Cold water supply*
- Hot water supply*
- Cooling water circuits

Pipe types: Plastic pipes:
PE, PEX, PA and PB Pipe materials,
which comply with the specified tolerances.

Pipe tolerances: for pipe ø 15, 22 and 28 mm:
+0.05 / -0.10 mm

Max. tightening torques: Plastic threads:
DN 10 - DN 15 (3/8" - 1/2") 3.0 Nm
DN 20 (3/4") 4.0 Nm
Max. tightening torques: Plastic threads: DN 10 - DN 15 (3/8" - 1/2") 3.0 Nm DN 20 (3/4") 4.0 Nm Working temperatures and pressures:
Air -20°C 10 bar
+23°C 15 bar with / 10 bar without retaining ring 15 - 22 mm ø
+23°C 15 bar - 28 mm ø
+70°C 7 bar
Water +1°C 10 bar
+23°C 10 bar
+70°C 7 bar

Metal pipes (soft):
Brass, copper and aluminium pipes,
which comply with the specified tolerances.

Manufactured to: EN/ISO 9001
PA plastic pipe to DIN 73378, DIN 74324 (not 22 - 28 mm)

Metal thread:
DN 15 (1/2") 4.0 Nm
DN 20 (3/4" - 1") 5.0 Nm
